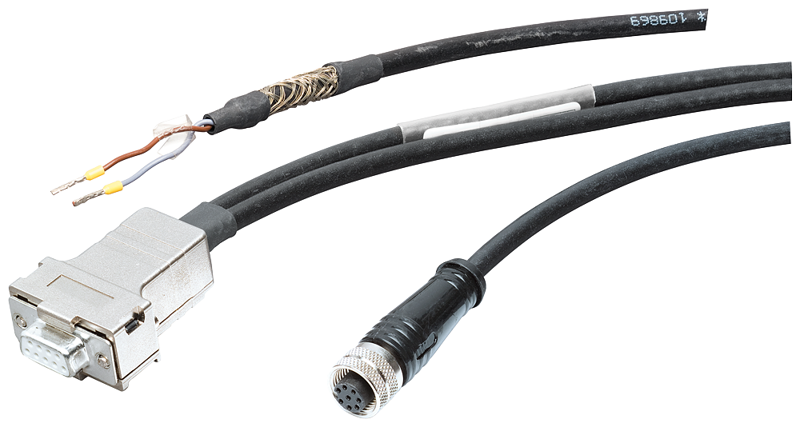

RS232 plug-in cables (Y cable) pre-assembled, between reader and PC (RS232), 5 m
SKU: 6GT2891-4KH50-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation RS232 cable, Sub-D / M12, with open strands.
Product Description: Highly adaptable communication line (6 cores).
SIMATIC RF200/RF300 pre-assembled connecting cable between reader and PC (RS232), PUR, trailing, length 5 m, 24 V-side with bare ends.
suitability for use: Plug-in cable for connecting an RS 232 reader to a PC.
cable designation: L-YC11Y 6x1x0.25 6x24AWG CM.
wire length: 5 m.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
number of electrical connections: 2.
type of electrical connection: Sub-D (female, 9 pin, straight) / M12 (female, 8 pin, straight) / wire end sleeves (labelled).
loop resistance per length / maximum: 160 mΩ/m.
insulation resistance coefficient: 20 GΩ·m.
operating voltage:
maximum: 300 V.
mechanical data:
number of electrical cores: 6.
design of the shield: Braided shield made of tin-plated copper wires.
outer diameter:
of cable sheath: 5.4 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material:
of the wire insulation: PVC.
of cable sheath: PUR.
colour:
of the insulation of data wires: DIN 47100.
of cable sheath: Black.
bending radius:
with single bend / minimum permissible: 21.6 mm.
with multiple bends / minimum permissible: 43 mm.
with continuous bending: 75 mm.
number of bending cycles: 3000000.
tensile load / maximum: 200 N.
weight per length: 45 kg/km.
ambient conditions:
ambient temperature:
during operation: -30 ... +80 °C.
during storage: -30 ... +80 °C.
during transport: -30 ... +80 °C.
during installation: -30 ... +80 °C.
fire behaviour: flames resistant according to IEC 60332-1-2.
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance:
to mineral oil: resistant.
to grease: resistant.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature:
halogen-free: No.
silicon-free: Yes.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; CM (only cable without plug).
certificate of suitability:
EAC approval: Yes.
reference code:
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
