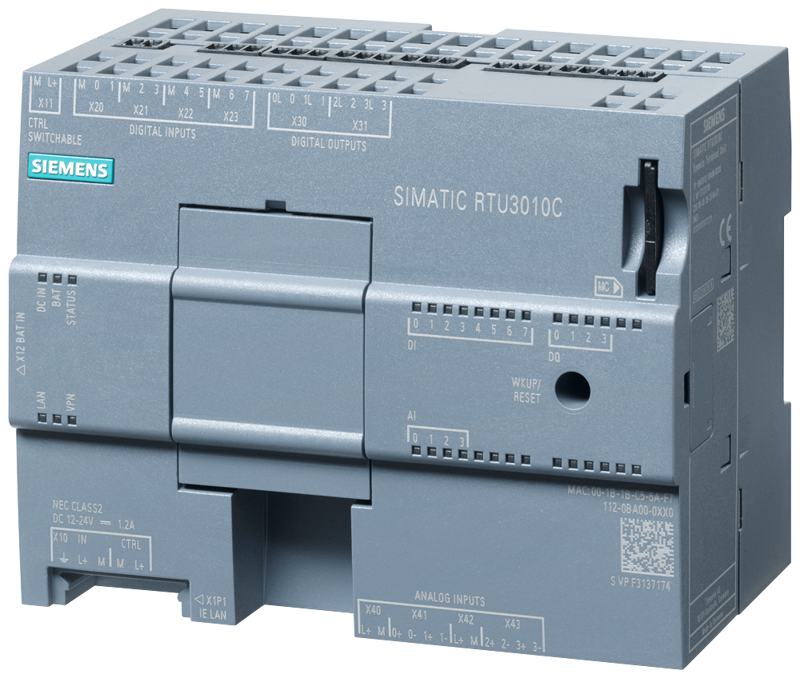

SIMATIC RTU3010C Low-Power RTU, Battery or solar-operated/ext. 10,8V-28,8V DC
SKU: 6NH3112-0BA00-0XX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC RTU3010C compact low-power RTU; battery or solar-powered; external power supply 10.8 V to 28.8 V DC; connection of external modems; connection to Telecontrol Server Basic; loadable protocols: DNP3, IEC 60870-5 104, SINAUT ST7, or MQTT; onboard I/O s: 8 DI, 4 DO, 4 AI; FTP client; configuration/diagnostics via web server; time-of-day synchronization; email; SD card slot.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating mode: Standby mode (Sleep mode), Actualization mode, Communication mode.
Transfer rate for Industrial Ethernet: 10 ... 100 Mbit/s.
Number of interfaces / according to Industrial Ethernet: 1.
Number of electrical connections:
At the 1st interface / according to Industrial Ethernet: 1.
For power supply: 1.
Number of slots for memory cards: 1.
Type of electrical connection at the 1st interface / according to Industrial Ethernet: RJ45 port.
Type of electrical connection for power supply: 5-pole pluggable terminal block.
Slot version of the memory card: SD 1.0, SD 1.1, SDHC, Siemens SMC.
Storage capacity / of the memory card / maximum: 32 Gi byte.
Design of the removable storage: C-PLUG.
Number of electrical connections / for digital input signals: 8.
Type of electrical connection / for digital input signals: pluggable screw terminal block.
Digital input version: Suitable for open-drain transistor or switch, 2-wire-technique.
Number of electrical connections / as counter inputs / for digital input signals: 2.
Number of electrical connections / for digital output signals: 4.
Type of electrical connection / for digital output signals: pluggable screw terminal block.
Digital output version: bistable relay, 2-wire-technique.
Output current / at digital output: 300 mA; Limiting continuous current.
Number of analog inputs / integrated: 4.
Connector type / at the analog input: pluggable screw terminal block.
Type of voltage / of the supply voltage: DC.
Supply voltage / external / at DC: 12 ... 24 V.
Supply voltage / external / at DC / rated value: 10.8 ... 28.8 V.
Type of output voltage / for the supply of external devices: DC 12 V or 24 V.
Consumed current from external supply voltage / at 24 V DC:
In standby mode / typical: 14 Ma.
In update mode / typical: 35 mA.
In communication mode / typical: 55 mA.
Consumed current with battery operation / at 7.2 V DC:
In standby mode / typical: 0.28 mA.
In update mode / typical: 71 mA.
In communication mode / typical: 125 mA.
Power loss [W] / with external supply voltage / at 24 V DC:
In standby mode / typical: 0.34 W.
In update mode / typical: 0.85 W.
In communication mode / typical: 1.25 W.
Power loss [W] / with battery operation / at 7.2 V DC:
In standby mode / typical: 0.002 W.
In update mode / typical: 0.51 W.
In communication mode / typical: 0.9 W.
Ambient temperature:
For vertical installation / during operation: -40 ... +60 °C.
For horizontally arranged busbars / during operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 30 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20; IP68 with protective housing.
Module format: Compact module.
Width: 130 mm.
Height: 100 mm.
Depth: 75 mm.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
