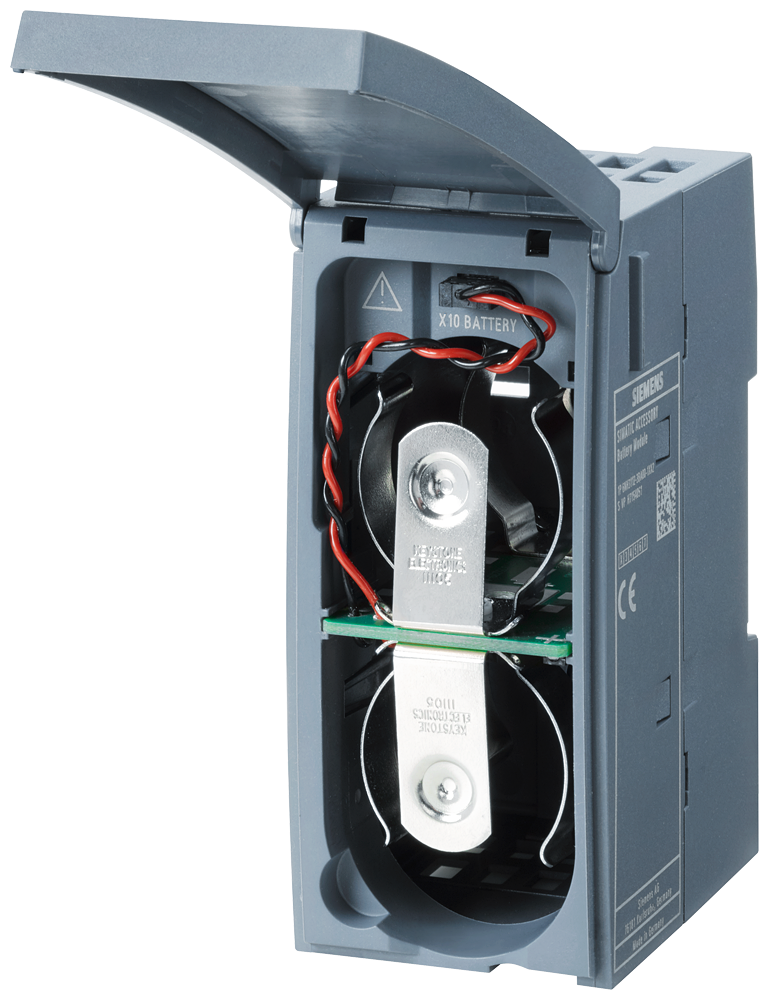

Battery housing for stand-alone RTU3000C
SKU: 6NH3112-3BA00-1XX2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Battery enclosure for holding two mono cells; Suitable for SIMATIC RTU3000C family; Batteries must be purchased separately and are not in the scope of delivery. Observe note regarding battery type in the Equipment Manual.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for operation: Suitable for two mono cells. Observe the information in the SIMATIC RTU3010C and RTU3030C Equipment Manuals.
Number of electrical connections: 2.
Type of electrical connection: Sockets for connecting to SIMATIC RTU3000C and another battery enclosure.
Material:
Housing: Plastic.
Battery holder: Spring steel, nickel-plated.
Ambient temperature:
In vertical mounting position / during operation: -40 ... +60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 30 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 45 mm.
Height: 100 mm.
Depth: 75 mm.
