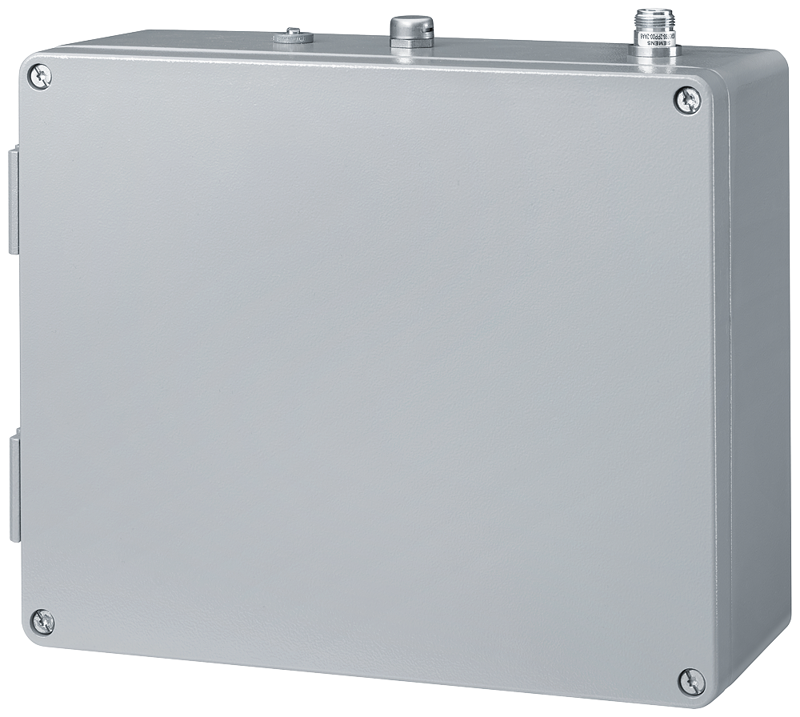

Degree of protection of aluminum enclosure IP68; suitable for SIMATIC RTU3000
SKU: 6NH3112-3BA00-1XX3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Suitable for SIMATIC RTU3000C; temperature range -40 to +80 °C; degree of protection of aluminium enclosure IP68.
Cover with pin-torx screws.
7 cable bushings and bushings for mobile radio antennas have been made; please order the cable glands and sealing plugs in the relevant quantity separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Degree of protection IP68 1 m / 24 h.
Suitability for operation: suitable for devices of the SIMATIC RTU3000C range.
Material: aluminium, powder coated.
Colour: grey (RAL 7001).
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Relative humidity at 30 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP68; 1 m / 24 h, observe the installation instructions.
Width: 280 mm.
Height: 230 mm.
Depth: 111 mm.
