SIEMENS SIMATIC S7-300 Connecting cable,
SKU: 6NH7701-0AR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

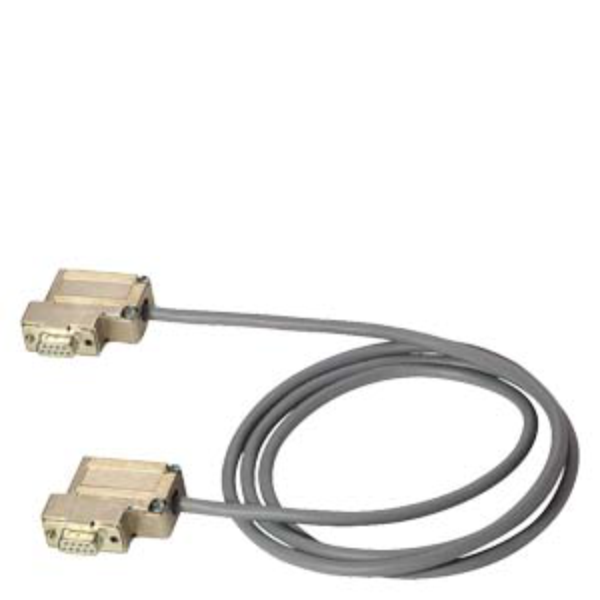

The 6NH7701-0AR is a preassembled SINAUT ST7 test cable that connects two TIM modules directly over RS232—no modem is required.
It is a null modem configuration that is suitable for diagnostics or temporary configurations in industrial automation environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical Characteristics:
Cable type: LIYCY 10x1x0.14.
Length: 6 meters.
Voltage rating:
RMS: 250 V.
Max: 350 V.
Insulation resistance: 20 GΩ·m.
Capacitance: 160 pF/m @ 1 kHz.
Inductance: 0.65 µH/m.
Number of connections: 2.
Number of cores: 10.
Mechanical & Material Data:
Inner conductor diameter: 0.14 mm.
Cable sheath diameter: 6.1 mm.
Shielding: Braided, tin-plated copper.
Insulation: PVC (DIN 47100 color-coded).
Sheath: PVC, grey.
Weight: 66 kg/km.
Minimum bend radius:
Single bend: 30.5 mm.
Multiple bends: 61 mm.
Environmental Conditions:
Operating/storage/transport temperature: -5°C to +70°C.
Installation temperature: up to 70°C.
Flame resistance: IEC 60332-1 compliant.
Chemical resistance: Conditional to mineral oil and grease.
UV resistance: Not resistant.
Compliance & Classification:
Halogen-free: No.
Silicon-free: Yes.
Marine approvals: Not certified.
CE, UKCA, CCC: Approved.
Reference codes:
IEC 81346-2: WG / WGB.
RoHS (China): Compliant.
