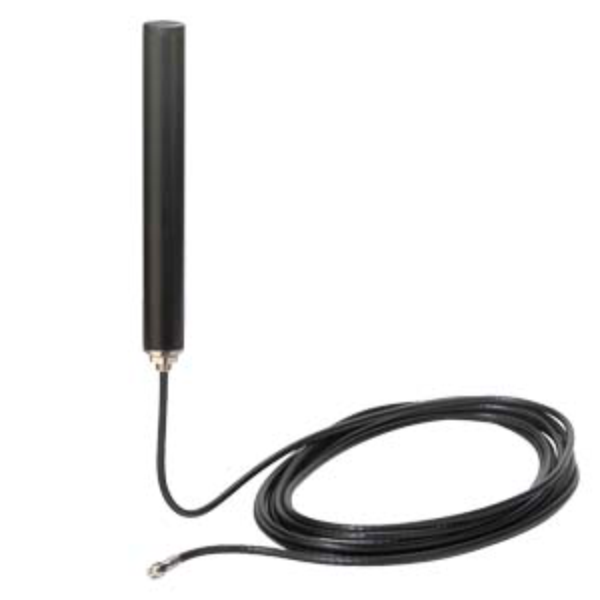

Siemens S7-1200 Quad-band GSM / UMTS / LTE ANT794-4MR antenna
SKU: 6NH9860-1AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The ANT794-4MR is a rod-style omnidirectional antenna engineered for 2G, 3G, and 4G (GSM/UMTS/LTE) networks in the EU frequency spectrum.
It features a 5-meter permanently attached cable with an SMA male connector and is supplied with a mounting bracket and fasteners for vertical wall or mast installation.
Its rugged, weatherproof design makes it suitable for industrial and outdoor deployments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Antenna Type: Rod antenna, omnidirectional.
Supported Networks: GSM, UMTS, LTE (EU bands).
Operating Frequencies: 790–960 MHz, 1710–2170 MHz, 2400–2690 MHz.
Antenna Gain: 0 dB.
Polarization: Linear Vertical.
Impedance: 50 Ω.
VSWR (max): 2.
Connector Type: SMA male.
Cable Length: 5 meters.
Cable Type: Li02YS-St-C-Y 1.
Material: Hard PVC, UV-resistant.
Protection Class: IP54.
Ambient Temperature Range: –40 °C to +85 °C.
Mounting Options: Wall, mast (vertical only).
Dimensions (Ø × H): 25 mm × 193 mm.
Net Weight: ~310 g.
RoHS Compliant: Yes.
Reference Code (IEC 81346-2:2019): TFB.
