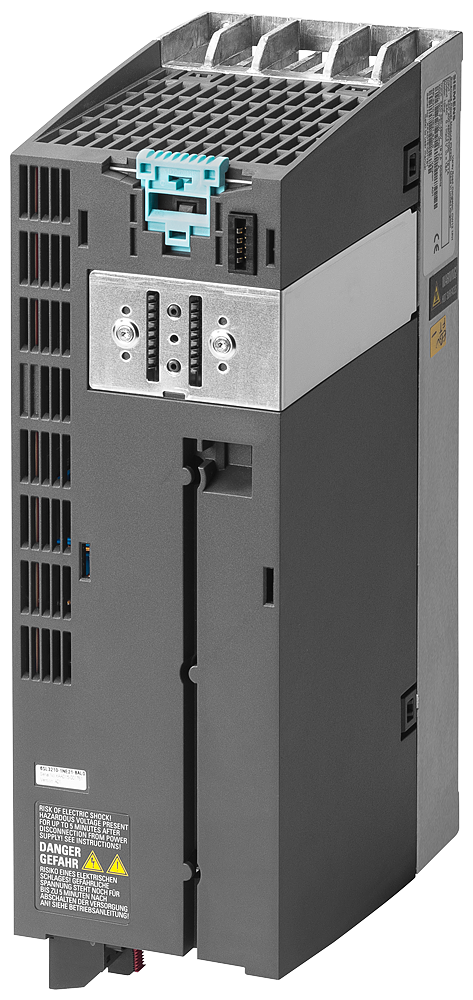

SINAMICS PM230, 3AC 380-480 V, 30,00 kW, IP20 / UL open type, FSD, A

SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 30KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 419 X 275 X 204 (HXWXD), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY Power Module SINAMICS PM230 Power Module with degree of protection IP20 the specialist for building management systems for the SINAMICS G120P frequency converter. The SINAMICS power unit together with the suitable CU230P-2 control unit and an IOP/IOP-2 (Intelligent Operator Panel) or BOP-2 (Basic Operator Panel) operator panel makes up the functional SINAMICS G120P frequency converter. The PM230 (degree of protection IP20) is a built-in device for installation in electrical cabinets and only generates low line harmonics and apparent power losses. In addition to the energy-related advantages, there is also less environmental stress. The PM230 Power Module (degree of protection IP 20) supplies motors in a power range extending from 0.37 kW up to 75 kW. Frame sizes FSA up to FSF of the PM230 Power Module, in degree of protection IP 20 as well as push-through versions are available with an integrated Class A line filter for installations according to Category C2 according to EN 61800-3 or without integrated line filter. As standard, the following accessories are included in the scope of delivery: Shield plates and shield connecting kits for EMC-compliant connection of power and control cables; for frame sizes FSA up to FSC, plug connectors for the line supply and motor. SINAMICS – the integrated drive family for every application area
