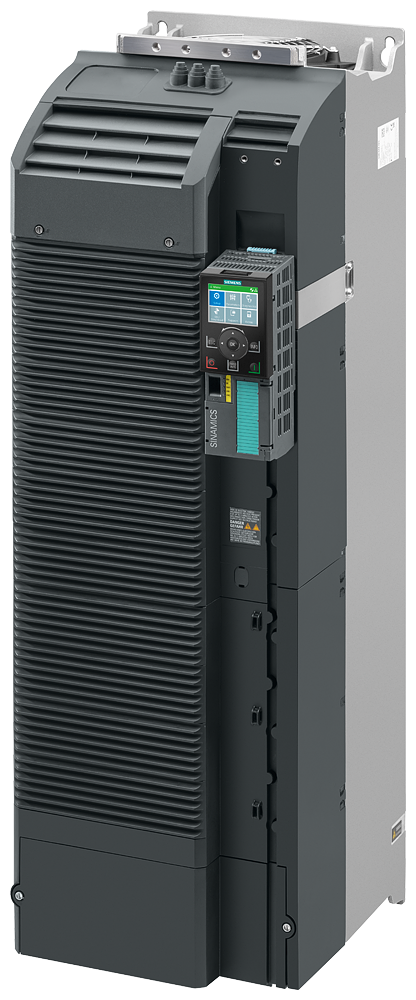

SINAMICS PM240-2, 3AC 380-480 V, 250,00 kW, IP20 / UL open type, FSG

SINAMICS G120/S120 POWER MODULE PM240-2 FSG C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 200kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 250kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1 Power Module SINAMICS PM240-2 Power Module – the ideal Power Module for standard applications in machinery construction based on the modular SINAMICS G120 inverter. As part of the modular SINAMICS G120 inverter (comprising power unit, control unit, operator panel), the PM240-2 Power Modules (degree of protection IP20) are equipped with a braking chopper (four-quadrant applications) – and are suitable for addressing many applications in general machinery construction. SINAMICS - simply my drive!
