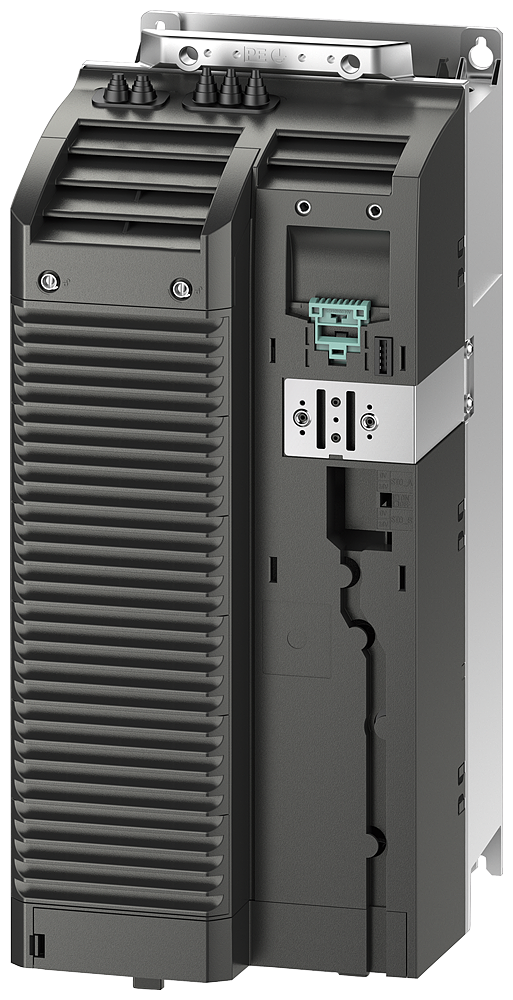

SINAMICS PM240P-2, 3AC 380-480 V, 22,00 kW, IP20 / UL open type, FSD

SINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 18.5KW FOR 150% 60S, 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 22kW FOR 135% 3S, 110% 57S, 100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1 Power Modules SINAMICS PM240P-2 Power Module - the specialist for pumps, fans and compressors for the SINAMICS G120P inverter. A functional SINAMICS G120P inverter is created by teaming up the SINAMICS power unit with a matching CU230P-2 Control Unit and an IOP (Intelligent Operator Panel) or Basic Operator Panel (BOP-2) – or optionally a blanking cover. Thanks to the integrated Safety functions (Safe TorqueOff / Safe Stop 1) the power unit conforms to the highest safety level. Can be used in harsh environmental conditions as a result of the high degree of protection (IP55). The integrated DC link inductor ensures that savings are possible due to greater energy efficiency with a higher output voltage. The PM240P-2 power unit with IP55 protection is available for the power range from 11 kW to 132 kW and in three frame sizes ranging from FSD to FSF. It covers a voltage range from 380 V to 690 V. SINAMICS – the seamless drive family for every application area.
