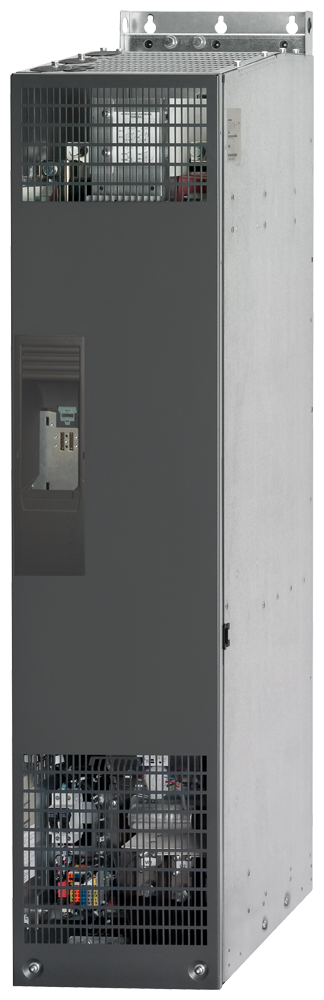

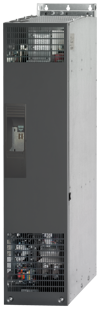

SINAMICS PM240, 3AC 380-480 V, 200,00 kW, IP20 / UL open type, FSGX

***spare part*** SINAMICS G120 PM 240 Power Module unfiltered without integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 160 kW at 160% 3s, 136% 57s, 100% 240 s; ambient temperature 0 to +50 °C, power low overload: 200 kW at 150% 3 s, 110% 57 s, 100% 240 s; ambient temperature 0 to +40 °C 1533x 326x 545 (HxWxD), FSGX degree of protection IP20 without Control Unit and BOP Power Module SINAMICS PM240/PM240-2 Power Module with degree of protection IP20 for the SINAMICS G120 modular frequency converter. Based on the required motor power, the supply voltage, and the expected braking cycles, the optimum power unit can quickly be selected. The Power Modules with degree of protection IP20 are for installation in a cabinet. The PM240 and PM240-2 Power Modules have a brake chopper (four-quadrant applications) and are suitable for numerous applications in general machinery construction. It is also an advantage that these Power Modules can be combined with all Control Units. The PM240/240-2 Power Modules are available in a three-phase voltage range of 380 V to 480 V and in a power range between 160 kW and 250 kW. These Power Modules are available in frame size FSGX and without an integrated line filter. SINAMICS – simply my drive!
