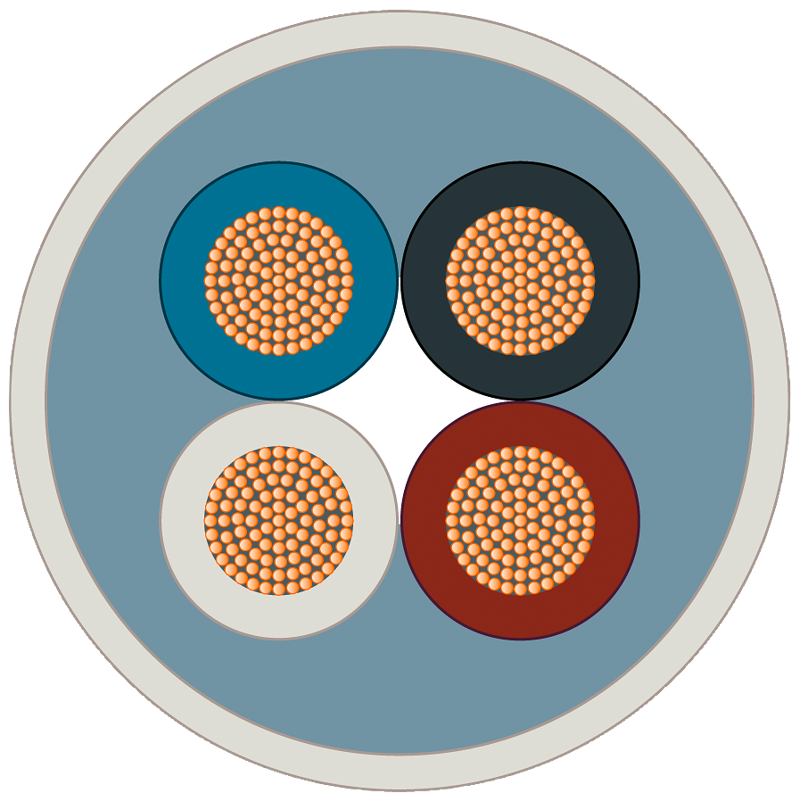

Robust energy cable, 4-wire energy cable, stranded wire 4x1.0 mm2, sold by meter
SKU: 6XV1801-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Durable, flexible energy cable (4 wires).
Sold unassembled and by the meter.
Robust Energy Cable with four cores and four stranded wires measuring 0.75 mm2.
Delivery unit: up to 1000 meters; order quantity minimum: 20 meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical data:
Insulation resistance coefficient: 20 GΩ·m.
Operating voltage / RMS value: 300 V.
Conductor cross section / of the power line: 0.75 mm².
Continuous current / of the power lines: 8 A.
Mechanical data, number of electrical cores: 4.
Outer diameter:
Of inner conductor: 1.15 mm.
Of the wire insulation: 1.7 mm.
Of cable sheath: 5.7 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PP.
Of cable sheath: PVC/FEP; FEP transparent.
Marking / of cores: Colour.
Colour:
Of the power line insulation: brown / blue, white / black.
Of cable sheath: grey.
Bending radius:
With single bend / minimum permissible: 23 mm.
With multiple bends / minimum permissible: 46 mm.
With continuous bending: 100 mm.
Number of bending cycles: 500000; acceleration 4 m/s².
Number of torsion cycles / with torsion by ± 180° on 1 m cable length: 1000000.
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -40 ... +90 °C.
During storage: -40 ... +90 °C.
During transport: -40 ... +90 °C.
During installation: -40 ... +90 °C, electrical characteristics measured at 20 ºC, tests according to DIN 47250 Part 4 or DIN VDE 0472.
Fire behaviour: Flame-resistant acc. to IEC 60332-1-2.
Chemical resistance:
To mineral oil: oil resistant according to DIN EN 60811-404 (7x24h/90°C).
To grease: resistant.
To water: resistant.
Radiological resistance / to UV radiation: resistant according to UL 2556 Sec. 4.2.8.5.
Silicon-free.
