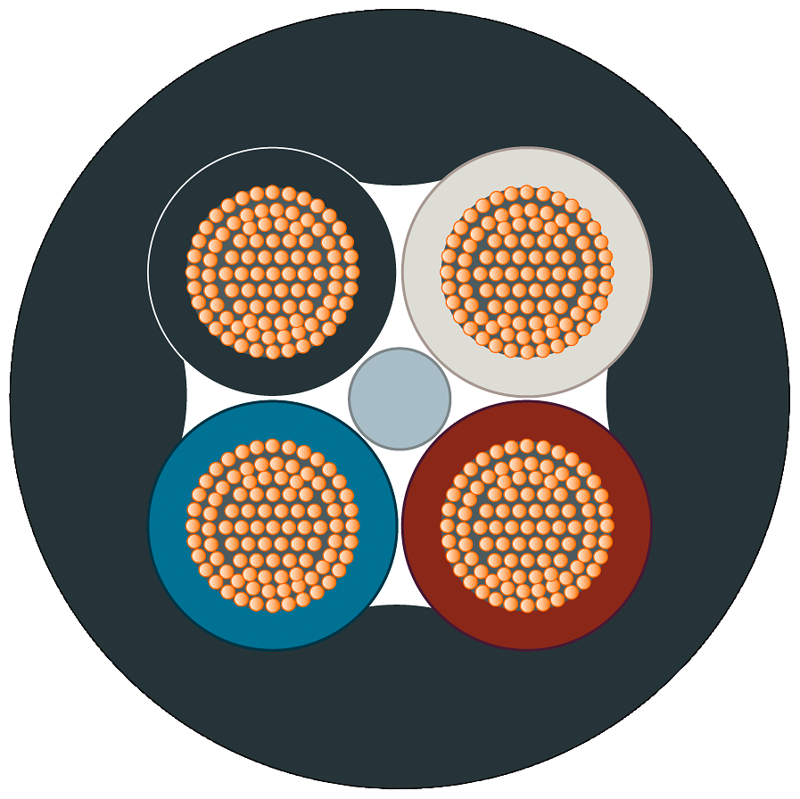

Energy cable, 4-wire, stranded wire 4x1.5 mm2, trailing, sold by meter
SKU: 6XV1801-2B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Power cable (4-core), sold by the meter, unassembled.
4-core power line, stranded wire, energy cable, 4 x 1.5 mm2, trailable.
Maximum delivery unit: 1000 meters; minimum order quantity: 20 meters; sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: connection of 24 V power supply.
Electrical data:
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 16 A.
Mechanical data:
Number of electrical cores: 4.
Outer diameter:
Of inner conductor: 1.6 mm.
Of the wire insulation: 2.3 mm.
Of cable sheath: 7.7 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PVC.
Marking / of cores: colour.
Colour:
Of the power line insulation: brown / white / blue / black.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 31 mm.
With multiple bends / minimum permissible: 62 mm.
With continuous bending: 62 mm.
Number of bending cycles: 2000000.
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -20 ... +90 °C.
During storage: -30 ... +90 °C.
During transport: -30 ... +90 °C.
During installation: -20 ... +90 °C.
Chemical resistance:
To mineral oil: Oil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C).
To grease: Conditional resistance.
To water: resistant according to UL 758 (75°C).
Radiological resistance / to UV radiation: resistant.
Silicon-free.
