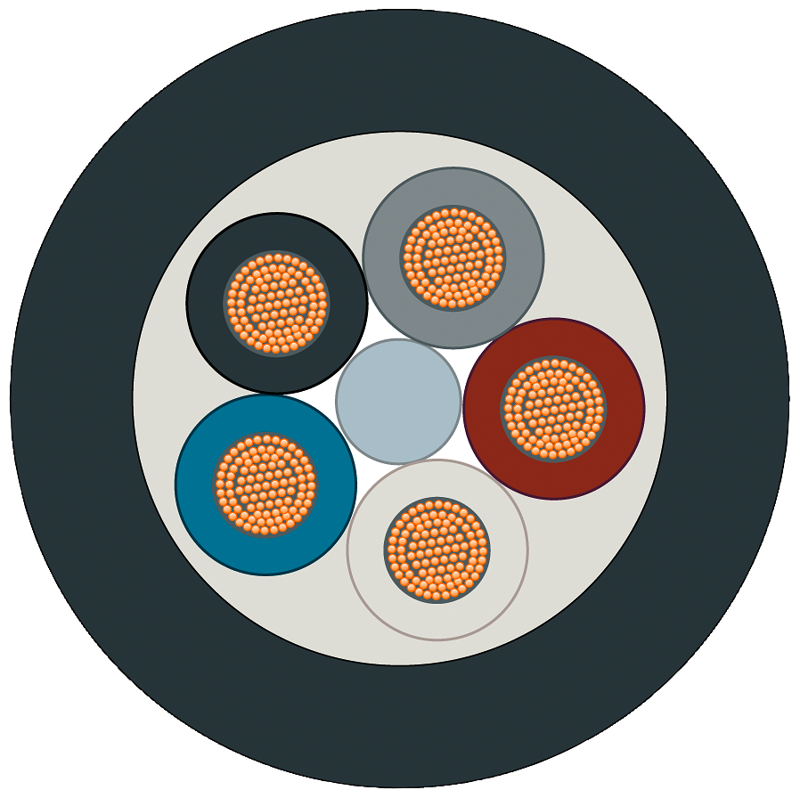

Control cable, 5-wire, power cable, stranded wire 5x AWG24, sold by the meter
SKU: 6XV1801-2C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The control cable measures 5 x 0.25.
Flexible Control cable (5-core), sold by the meter and unassembled.
Control cable, 5-core power line, stranded wire, 5 x AWG24; maximum delivery unit is 1000 meters, with a minimum order quantity of 20 meters sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Electrical data:
Operating voltage / RMS value: 300 V.
Conductor cross section / of the power line: 0.4 mm².
Continuous current / of the power lines: 2.5 A.
Mechanical data:
Number of electrical cores: 5.
AWG number: 24.
Outer diameter:
Of inner conductor: 0.7 mm.
Of the wire insulation: 1.2 mm.
Of cable sheath: 5.3 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Conductor class: 6.
Material:
Of the conductor: CU, blank.
Of the wire insulation: FRNC.
Of cable sheath: PUR.
Marking / of cores: Colour.
Colour:
Of the power line insulation: Brown / white / blue / black / grey.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 21 mm.
With multiple bends / minimum permissible: 42 mm.
Tensile load / maximum: 10 N.
Ambient temperature:
During operation: -15 ... +80 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
During installation: -15 ... +80 °C.
Chemical resistance:
To mineral oil: oil resistant according to DIN EN 60811-404 (7x24h/90°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: sunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h).
Halogen-free.
Silicon-free.
