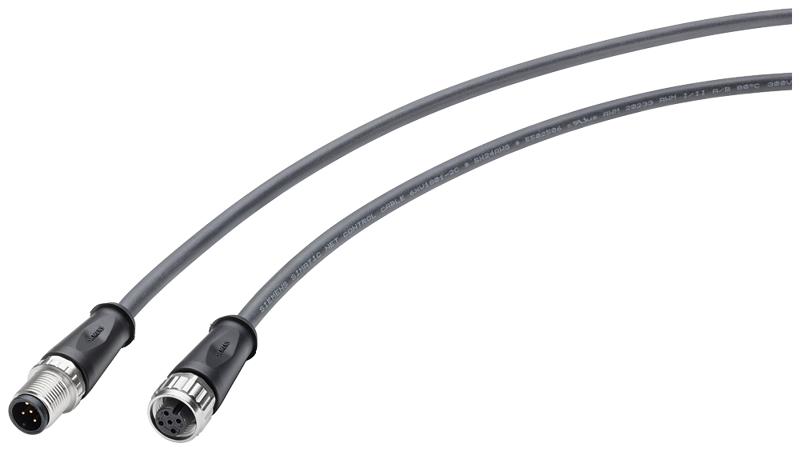

Control connecting cable M12-180/M12-180, A-coded, IO-Link port class B 0.5m

Specifications: Suitability for use: Plug-in cable for connecting IO-Link components and sensing mechanisms to IO modules, degree of protection IP 65/67. Wire length: 0.5 m. Electrical data: Operating voltage / RMS value: 300 V. Conductor cross section / of the power line: 0.4 mm². Continuous current / of the power lines: 2.5 A. Mechanical data: Number of electrical cores: 5. Type of electrical connection: M12-180. AWG number: 24. Outer diameter: Of inner conductor: 0.7 mm. Of the wire insulation: 1.2 mm. Of cable sheath: 5.3 mm. Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm. Conductor class: 6. Material: Of the conductor: CU, blank. Of the wire insulation: FRNC. Of cable sheath: PUR. Marking / of cores: Colour. Colour: Of the power line insulation: Brown / white / blue / black / grey. Of cable sheath: Black. Bending radius: With single bend / minimum permissible: 21 mm. With multiple bends / minimum permissible: 42 mm. Tensile load / maximum: 10 N. Plug: Type of plug interlock: screwed. Design of plug-in connection: M12-180. Connector coding: M12. Connector coding / of the M12 circular connector: A coded. Ambient temperature: During operation: -15 ... +80 °C. During storage: -25 ... +80 °C. During transport: -25 ... +80 °C. During installation: -15 ... +80 °C. Chemical resistance: To mineral oil: Conditional resistance. To grease: Conditional resistance. To water: Conditional resistance. Radiological resistance / to UV radiation: sunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h). Protection class IP: IP65 / 67. Halogen-free. Silicon-free.
