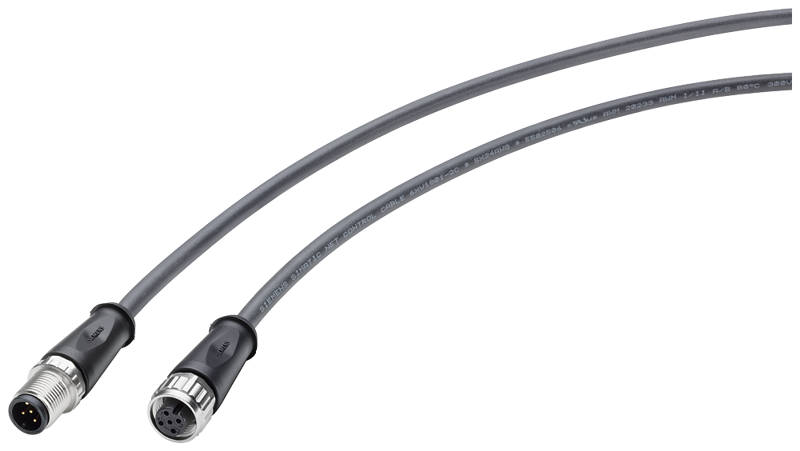

Control connecting cable M12-180/M12-180, A-coded, IO-Link port class B, 1.5 m
SKU: 6XV1801-2CH15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Control cable M12-180.
Flexible plug-in cable (5-wire), desired length, pre-assembled with one 5-pin M12 male and one female connection (A-coded, IO-Link Port Class B, 180° cable outlet).
Control cable M12-180/M12-180; 5-core; IO-Link port Class B; pre-assembled with M12 plug and M12 socket (A-coded); straight cable outlet; 1.5 m length.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Plug-in cable for connecting IO-Link components and sensing mechanisms to IO modules, degree of protection IP 65/67.
Wire length: 1.5 m.
Electrical data:
Operating voltage / RMS value: 300 V.
Conductor cross section / of the power line: 0.4 mm².
Continuous current / of the power lines: 2.5 A.
Mechanical data:
Number of electrical cores: 5.
Type of electrical connection: M12-180.
AWG number: 24.
Outer diameter:
Of inner conductor: 0.7 mm.
Of the wire insulation: 1.2 mm.
Of cable sheath: 5.3 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Conductor class: 6.
Material:
Of the conductor: CU, blank.
Of the wire insulation: FRNC.
Of cable sheath: PUR.
Marking / of cores: Colour.
Colour:
Of the power line insulation: Brown / white / blue / black / grey.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 21 mm.
With multiple bends / minimum permissible: 42 mm.
Tensile load / maximum: 10 N.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: M12-180.
Connector coding: M12.
Connector coding / of the M12 circular connector: A coded.
Ambient temperature:
During operation: -15 ... +80 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
During installation: -15 ... +80 °C.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: sunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h).
Protection class IP: IP65 / 67.
Halogen-free.
Silicon-free.
