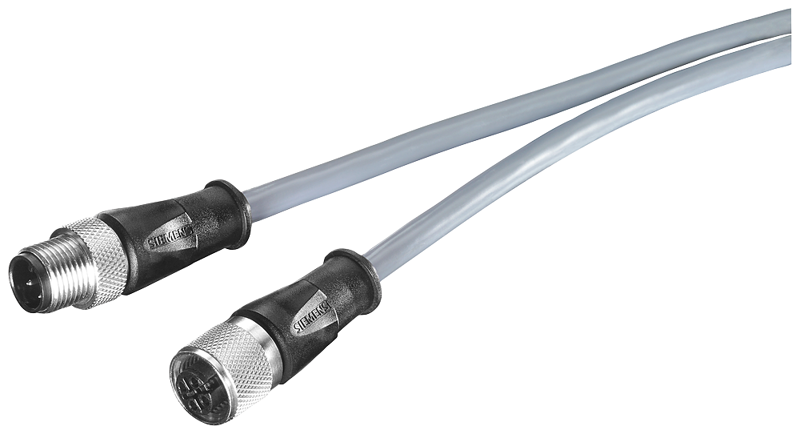

Power Connecting Cable M12-180/M12-180, A-coded, 4-pole, 15 m, for ET200
SKU: 6XV1801-5DN15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Power connecting cable M12-180/M12-180 for the ET 200's power supply; pre-assembled cable with M12 connector and M12 socket, A-coded, 4-pole, 15 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Wire length: 15 m.
Electrical data:
Operating voltage / RMS value: 300 V.
Conductor cross section / of the power line: 0.75 mm².
Mechanical data:
Number of electrical cores: 4.
Type of electrical connection: M12-180.
Outer diameter:
Of inner conductor: 1.1 mm.
Of the wire insulation: 1.7 mm.
Of cable sheath: 5.7 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Design of stranding element: Pairs.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PP.
Of cable sheath: PVC.
Marking / of cores: Colour.
Colour:
Of the power line insulation: brown / white / blue / black.
Of cable sheath: grey.
Bending radius:
With single bend / minimum permissible: 57 mm.
With multiple bends / minimum permissible: 57 mm.
With continuous bending: 57 mm.
Number of bending cycles: 100000.
Tensile load / maximum: 15 N.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: M12-180.
Connector coding: M12.
Connector coding / of the M12 circular connector: A coded.
Ambient temperature:
During operation: -25 ... +80 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
During installation: 80 °C.
Ambient condition / for operation: With moving applications, the permissible operating temperature range is -5 to +80 degrees Celsius.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Protection class IP: IP65 / 67.
Silicon-free.
