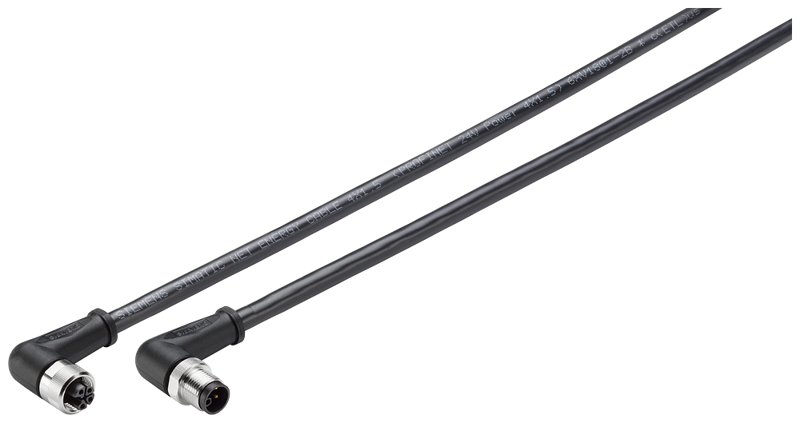

Power Connecting Cable M12St-90/M12Bu-90 for power supply of the RF18xc 10m
SKU: 6XV1801-6GN10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Power Connecting Cable M12-90.
Flexible plug-in cable (4 wires), desired length, pre-assembled with one 4-pin M12 male and one female connection (L-coded, 90° cable outlet).
Power connection cable M12-90/M12-90 for powering terminal devices and network components: pre-assembled cable with M12 plug and socket, L-coded, 4 pin, 10 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for connecting the 24 V power supply to RF185C, RF186C, RF188C to IP65/67 degree of protection.
Wire length: 10 m.
Electrical data:
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 16 A.
Mechanical data:
Number of electrical cores: 4.
Type of electrical connection: M12-90.
Outer diameter:
Of inner conductor: 1.6 mm.
Of the wire insulation: 2.3 mm.
Of cable sheath: 7.7 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PVC.
Marking / of cores: Colour.
Colour:
Of the power line insulation: brown / white / blue / black.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 31 mm.
With multiple bends / minimum permissible: 62 mm.
With continuous bending: 62 mm.
Number of bending cycles: 2000000.
Tensile load / maximum: 100 N.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: M12-90.
Connector coding: M12.
Connector coding / of the M12 circular connector: L coded.
Ambient temperature:
During operation: -20 ... +90 °C.
During storage: -30 ... +90 °C.
During transport: -30 ... +90 °C.
During installation: -20 ... +90 °C.
Chemical resistance:
To mineral oil: Oil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65 / 67.
Silicon-free.
