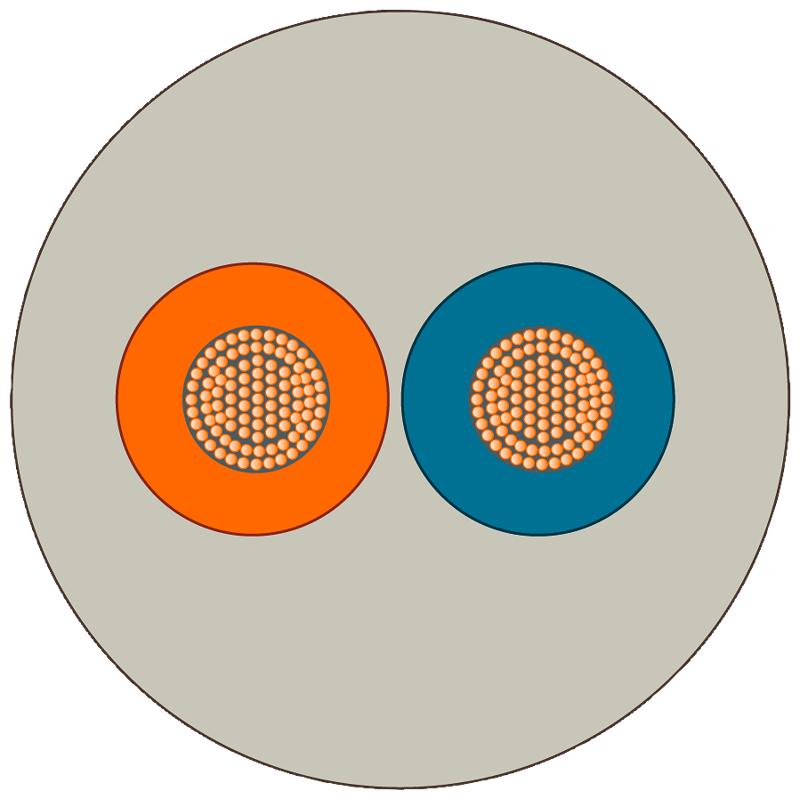

Energy Cable, 2-wire power cable, stranded wire, 2x0.75 mm2, trailing
SKU: 6XV1812-8A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Energy cable Two times 0.75.
Power cable (2-core), unassembled and sold by the meter.
2-wire power line, stranded wire, 2x0.75 mm2, trailable.
Maximum delivery unit is 2000 m, with a minimum order quantity of 20 m sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Connection of signalling contact and 24 V power supply to SCALANCE X and SCALANCE W.
Electrical data:
Insulation resistance coefficient: 1 GΩ·m.
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 0.75 mm².
Continuous current / of the power lines: 6 A.
Mechanical data:
Number of electrical cores: 2.
Outer diameter:
Of inner conductor: 1.3 mm.
Of the wire insulation: 2.5 mm.
Of cable sheath: 7.4 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Design of stranding element: Pairs.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PVC.
Marking / of cores: Colour.
Colour:
Of the power line insulation: brown / blue.
Of cable sheath: Grey.
Bending radius:
With single bend / minimum permissible: 19 mm.
With multiple bends / minimum permissible: 45 mm.
With continuous bending: 57 mm.
Number of bending cycles: 100000.
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -20 ... +80 °C.
During storage: -20 ... +80 °C.
During transport: -20 ... +80 °C.
During installation: -20 ... +80 °C.
Ambient condition / for operation: temperature range for permanent installation -30 °C to 90 °C.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Silicon-free.
