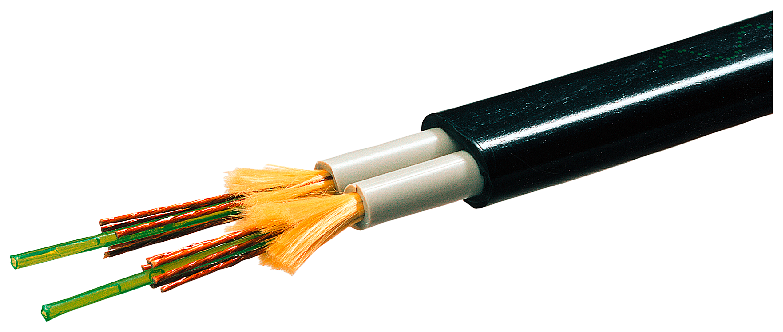

FO Standard Cable 62.5/125/900 (OM1), glass, flexible, MM, 4x ST, 75 m
SKU: 6XV1820-5BN75
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible glass fibreoptic cable in the desired length, preassembled.
Fiber optic cable (62.5/125), standard, splitable, pre-assembled with four BFOC connectors, 75 m in length.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for installation indoors and outdoors.
Wire length: 75 m.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Multimode graded-index Fiber 62.5/125 µm, OM 1.
Design of the FOC core: Compact core, diameter 900 µm.
Design of the Fiber-optic cable: Segmental outer conductor.
Outer diameter:
Of the optical Fibers: 62.5 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 3.5 mm.
Width / of cable sheath: 9.8 mm.
Thickness / of cable sheath: 6.3 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: PVC.
Of the Fiber-optic cable sheath: PVC.
Of the strain relief: Aramid Fibers and glass roving.
Colour:
Of the FOC core sheath: Grey.
Of cable sheath: black.
Bending radius:
With single bend / minimum permissible: 80 mm.
With multiple bends / minimum permissible: 80 mm.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: not resistant.
To grease: not resistant.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP20.
Product feature: silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 4000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 500 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 1000 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
