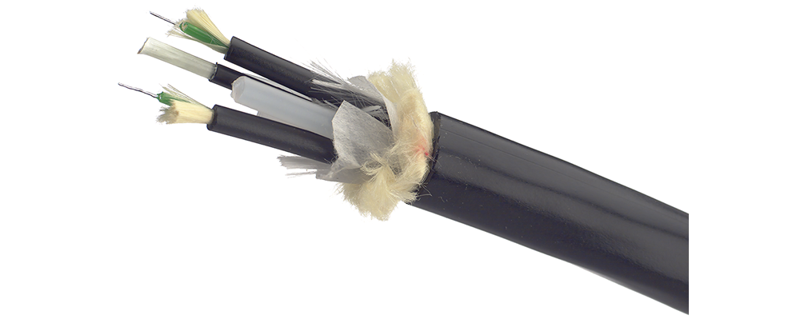

FO Cable 62.5/125 (OM1), glass, flexible, MM, trailing, 4x ST, 2 m
SKU: 6XV1820-6BH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation is Flexible fiber optic trailing cable.
Product Description: Flexible glass fiber-optic cable, desired length, preassembled.
Fiber Optic Cable (62.5/125) Flex, Trailing cable, splitable, pre-configured with 4 BFOC connectors, 2 m in length.
Suitability for use: Flexible cable for installation in cable carriers indoors and outdoors.
Version of the assembled FO cable: Assembled with four BFOC connectors.
Cable designation: AT-W11Y(ZN)11Y 2 G 62,5/125 OM1.
Wire length: 2 m.
Optical data:
Attenuation factor per length:
At 850 nm / maximum: 3 dB/km.
At 1300 nm / maximum: 0.8 dB/km.
Bandwidth length product:
At 850 nm: 300 GHz·m.
At 1300 nm: 800 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of fibres / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor fibre: Multimode graded-index fibre 62.5/125 µm, OM 1.
Design of the FOC core: Hollow core, filled, diameter: 1400 µm.
Design of the fibre-optic cable: Segment able outer conductor.
Outer diameter:
Of the optical fibres: 62.5 µm.
Of the optical fibre sheath: 125 µm.
Of the FOC core sheath: 3.5 mm.
Outer diameter / of the cable: 12.9 mm.
Material:
Of the fibre-optic cable core: Quartz glass.
Of the optical fibre sheath: Quartz glass.
Of the FOC core sheath: PUR.
Of the fibre-optic cable sheath: PUR.
Of the strain relief: Aramid fibres, also GRP central element.
Colour:
Of the FOC core sheath: Black.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 150 mm.
With multiple bends / minimum permissible: 150 mm.
Number of bending cycles: 100000.
Tensile load:
During installation / short-term: 2000 N.
During operation / maximum: 1000 N.
Weight per length: 130 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -30 ... +60 °C.
During storage: -30 ... +70 °C.
During transport: -30 ... +70 °C.
During installation: -30 ... +60 °C.
Fire behaviour: flammable.
Chemical resistance:
To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min.
To grease: Resistance.
Radiological resistance / to UV radiation: Resistant.
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature:
Halogen-free: Yes.
Silicon-free: Yes.
Product component / rodent protection: No.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 4000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 500 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 1000 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2: WH.
According to IEC 81346-2:2019: WHA.
