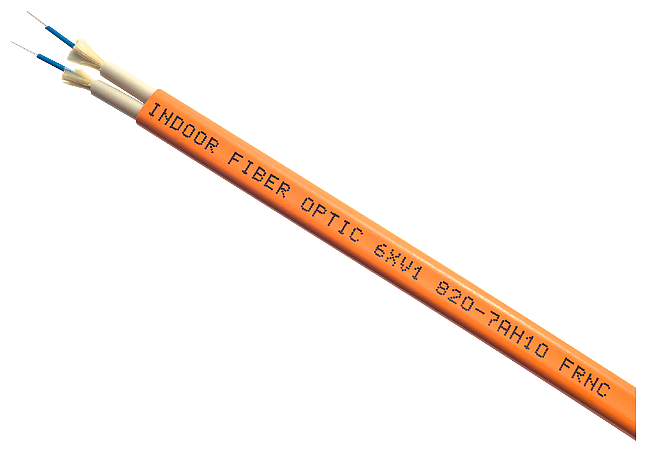

FO Indoor Cable 62.5/125/900 (OM1), glass, MM, halogen-free, 4x ST, 1 m

Specifications: Suitability for use: non-crush, halogen-free and flame-retardant cable for indoor installation. Wire length: 1 m. Number of Fibers / per FOC core: 1. Number of FO cores / per FOC cable: 2. Version of the FO conductor Fiber: Multimode graded-index Fiber 62.5/125 µm, OM 1. Design of the FOC core: Compact core, diameter 900 µm. Design of the Fiber-optic cable: Segmental inner conductor. Outer diameter: Of the optical Fibers: 62.5 µm. Of the optical Fiber sheath: 125 µm. Of the FOC core sheath: 2.9 mm. Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm. Width / of cable sheath: 6.8 mm. Thickness / of cable sheath: 3.9 mm. Material: Of the Fiber-optic cable core: Quartz glass. Of the optical Fiber sheath: Quartz glass. Of the FOC core sheath: FRNC. Of the Fiber-optic cable sheath: FRNC. Of the strain relief: Aramid Fibers. Colour: Of the FOC core sheath: Grey. Of cable sheath: orange. Bending radius: With single bend / minimum permissible: 30 mm. With multiple bends / minimum permissible: 50 mm. Ambient temperature: During operation: -20 ... +60 °C. During storage: -25 ... +70 °C. During transport: -25 ... +70 °C. During installation: -5 ... +50 °C. Chemical resistance: To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h and +25 °C, 168 h. To grease: not resistant. Radiological resistance / to UV radiation: not resistant. Protection class IP: IP20. Product features: Halogen-free. Silicon-free. Wire length: For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 4000 m. For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 500 m. For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 1000 m. For glass FOC / with PROFIBUS / maximum: 3000 m.
