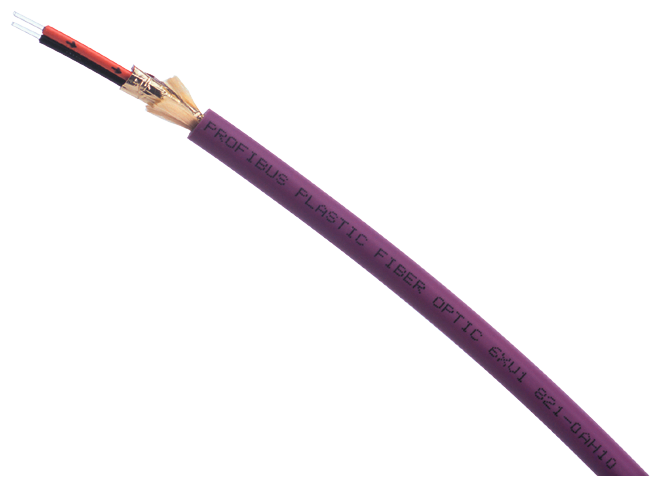

PB POF Standard Cable (980/1000), plastic, PVC outer sheath, 4x ST, 50 m
SKU: 6XV1821-0BN50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Fiber-optic cable with poly optical Fiber, preferred length, preassembled.
PROFIBUS Plastic Fiber Optic, standard cable with 4 BFOC connections, 50 m long.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for indoor applications.
Wire length: 50 m.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Step index Fiber 980/1000 µm.
Outer diameter:
Of the optical Fibers: 980 µm.
Of the optical Fiber sheath: 1000 µm.
Of the FOC core sheath: 2.2 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 7.8 mm.
Symmetrical deviation / of the outer diameter of the line: 0.3 mm.
Material:
Of the Fiber-optic cable core: Polymethylmethacrylate (PMMA).
Of the optical Fiber sheath: Fluoridated special polymer.
Of the FOC core sheath: PA.
Of the Fiber-optic cable sheath: PVC.
Of the strain relief: Kevlar Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: Violet.
Bending radius:
With single bend / minimum permissible: 100 mm.
With multiple bends / minimum permissible: 150 mm.
Tensile load:
During installation / short-term: 100 N.
During operation / maximum: 100 N.
Ambient temperature:
During operation: -30 ... +70 °C.
During storage: -30 ... +70 °C.
During transport: -30 ... +70 °C.
During installation: 50 °C.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
Radiological resistance / to UV radiation: not resistant.
Protection class IP: IP20.
Product feature: silicon-free.
Wire length for POF FOC / with PROFIBUS / maximum: 80 m.
