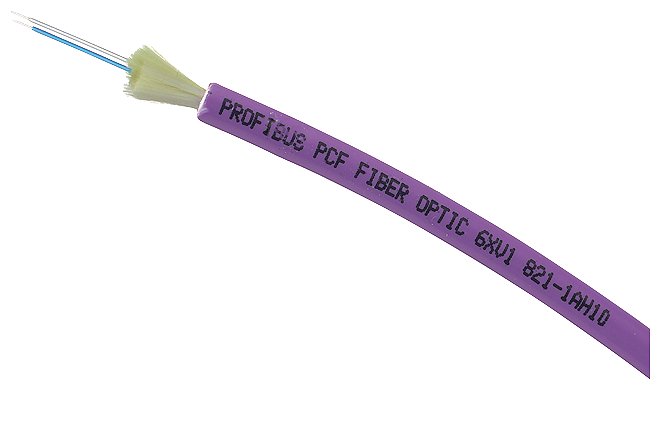

PB PCF Fiber Optic Cable, PVC outer sheath, 4 PCF Simplex plugs IP20, 50 m
SKU: 6XV1821-1CN50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation PROFIBUS PCF Fiber Optic Standard Cable.
Product Description: PCF fiber-optic cable with plastic cladding, preferred length, preassembled.
PROFIBUS PCF fiber optic cable with four PCF simplex connectors, 50 m in length.
Suitability for use: Cable for indoor applications.
Version of the assembled FO cable: Assembled with four Simplex connectors.
Cable designation: I-V(ZN)Y 2K 200/230.
Wire length: 50 m.
Optical data:
Attenuation factor per length:
At 650 nm / maximum: 10 dB/km.
At 660 nm / maximum: 10 dB/km.
Bandwidth length product:
At 650 nm: 17 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of fibres / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor fibre: Step index fibre 200/230 µm.
Outer diameter:
Of the optical fibres: 200 µm.
Of the optical fibre sheath: 230 µm.
Of the FOC core sheath: 2.2 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 4.7 mm.
Material:
Of the fibre-optic cable core: Quartz glass.
Of the optical fibre sheath: Fluoridated special polymer.
Of the FOC core sheath: PVC.
Of the fibre-optic cable sheath: PVC.
Of the strain relief: Kevlar fibres.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: Violet.
Bending radius:
With single bend / minimum permissible: 47 mm.
With multiple bends / minimum permissible: 70 mm.
Tensile load:
During installation / short-term: 800 N.
During operation / maximum: 200 N.
Short-term shear force per length: 100 N/cm.
Weight per length: 22 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -30 ... +70 °C.
During storage: -30 ... +70 °C.
During transport: -30 ... +70 °C.
During installation: -5 ... +50 °C.
Fire behaviour: flame-resistant acc. to IEC 60332-1-2.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
Radiological resistance / to UV radiation: not resistant.
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Product component / rodent protection: No.
Wire length:
For PCF FOC / with PROFIBUS / maximum: 400 m.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2: WH.
According to IEC 81346-2:2019: WHA.
