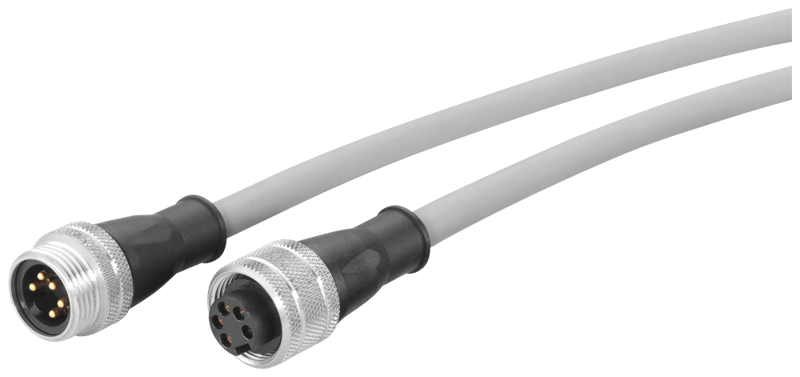

7/8" plug-in cable, 2x 7/8" plugs, 1 m, for ET200
SKU: 6XV1822-5BH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation 7/8-inch connection cable.
Product description: Plug-in cable (5-core) in the desired length, preassembled with two 5-pole 7/8-inch male/female contact connectors.
7/8" plug-in cable for the ET 200's power supply, preassembled with two 7/8" connectors, 5-pole, 1.0 m.
Suitability for use: Power supply of ET 200 modules with 7/8-inch power port to IP 65 degree of protection.
Cable designation: L-Y11Y-Z 5x1x1.5 GR.
Wire length: 1 m
Electrical data:
Insulation resistance coefficient: 1 GΩ·m.
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 16 A.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 5.
Type of electrical connection: 7/8 inch - 180.
Outer diameter:
Of inner conductor: 1.55 mm.
Of the wire insulation: 2.73 mm.
Of cable sheath: 10.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Design of stranding element: Pairs.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PUR.
Product component / PE connection: Yes.
Marking / of cores: Colour, digits.
Colour:
Of the power line insulation: black.
Of cable sheath: grey.
Bending radius:
With single bend / minimum permissible: 27 mm.
With multiple bends / minimum permissible: 63 mm.
With continuous bending: 75 mm.
Number of bending cycles: 5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, an acceleration of 4 m/s² and a speed of 180 m/min.
Tensile load / maximum: 500 N.
Weight per length: 149 kg/km.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: 7/8 inch - 180.
Connector coding: 7/8 inch.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Fire behaviour: Flame-resistant acc. to IEC 60332-1.
Chemical resistance:
To mineral oil: resistant.
To grease: resistant.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65 / 67.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: No.
UL/ETL style / 600 V Rating: Yes.
Certificate of suitability: UL2238 E300110.
EAC approval: Yes.
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2:2019: WDB.
