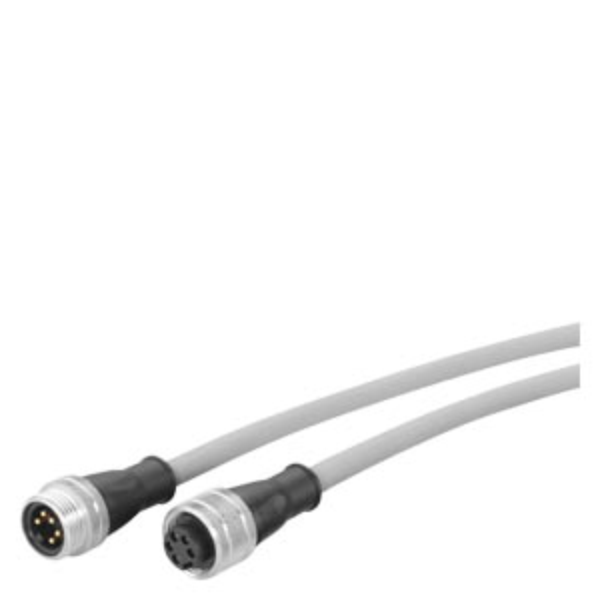

7/8" plug-in cable, 2x 7/8" plugs, 15 m, for ET200
SKU: 6XV1822-5BN15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type identification is 7/8-inch connection cable.
Plug-in cable (5-core), desired length, preassembled with two 5-pole 7/8-inch male/female contact connectors.
Pre-assembled 7/8" plug-in cable for the ET 200 power supply, with 2 7/8" connectors, 5-pole, and 15 m length.
suitability for use: Power supply of ET 200 modules with 7/8-inch power port to IP 65 degree of protection.
cable designation: L-Y11Y-Z 5x1x1.5 GR.
wire length: 15 m.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Insulation resistance coefficient: 1 GΩ·m.
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 16 A.
Mechanical data:
Number of electrical cores: 5.
Type of electrical connection: 7/8 inch – 180.
Outer diameter:
Of inner conductor: 1.55 mm.
Of the wire insulation: 2.73 mm.
Of cable sheath: 10.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Design of stranding element: Pairs.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PUR.
Product component / PE connection: Yes.
Marking / of cores: Colour, digits.
Colour:
Of the power line insulation: black.
Of cable sheath: grey.
Bending radius:
With single bend / minimum permissible: 27 mm.
With multiple bends / minimum permissible: 63 mm.
With continuous bending: 75 mm.
Number of bending cycles: 5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, an acceleration of 4 m/s² and a speed of 180 m/min.
Tensile load / maximum: 500 N.
Weight per length: 149 kg/km.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: 7/8 inch – 180.
Connector coding: 7/8 inch.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Fire behaviour: Flame-resistant acc. to IEC 60332-1.
Chemical resistance:
To mineral oil: resistant.
To grease: resistant.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65 / 67.
