PROFIBUS FC Standard Cable, 2-core, special design for fast installation 50 m
SKU: 6XV1830-0EN50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS FC Standard Cable GP.
Product Description: Standard bus cable (2 wires), desired length, unassembled..
PROFIBUS FC Standard bus cable is 2-wire, insulated, and has a unique arrangement for quick installation (50 m).
Suitability for use: Standard cable specially designed for fast, permanent installation.
Cable designation: 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR.
Wire length: 50 m
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.0025 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.022 dB/m.
At 16 MHz / maximum: 0.042 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 110 Ω/km.
Shield resistance per length / maximum: 9.5 Ω/km.
Capacity per length / at 1 kHz: 28.5 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.

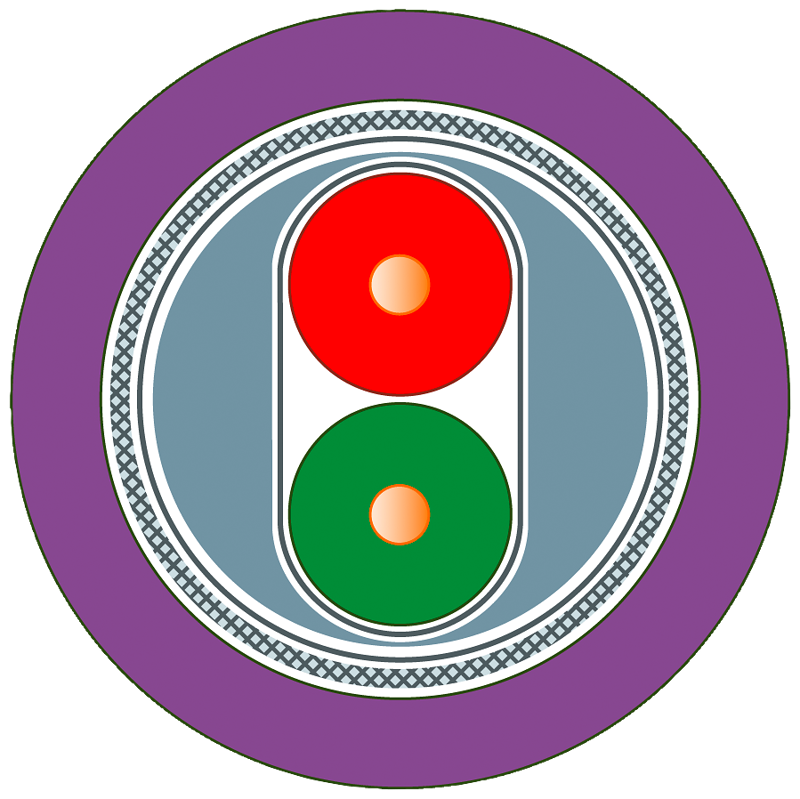

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Type of electrical connection / FastConnect: Yes.
Outer diameter:
Of inner conductor: 0.65 mm.
Of the wire insulation: 2.55 mm.
Of the inner sheath of the cable: 5.4 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: red / green.
Of cable sheath: Violet.
Bending radius:
With single bend / minimum permissible: 37.5 mm.
With multiple bends / minimum permissible: 75 mm.
Tensile load / maximum: 100 N.
Weight per length: 78 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +75 °C.
During storage: -40 ... +75 °C.
During transport: -40 ... +75 °C.
During installation: -40 ... +75 °C.
Note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4).
Class of burning behaviour / according to EN 13501-6: Eca.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(ETL)us, CMG / (ETL)us CL3 / Sun Res.
UL/ETL style / 600 V Rating: Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2.
Certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
UL approval: Yes.
RoHS conformity: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
