Siemens S7-1500 PROFIBUS FC FRNC Cable GP
SKU: 6XV1830-0LH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The product type designation is PROFIBUS FC FRNC Cable GP.
bus cable that is flame-retardant and halogen-free in accordance with IEC 60754-1/2 (2-core), sold by the meter, unassembled.
PROFIBUS FC FRNC Cable GP is a copolymer-sheathed, flame-retardant, halogen-free bus cable that is sold by the meter. The delivery unit maximum is 1000 meters, and the minimum order quantity is 20 meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for: Halogen-free cable, suitable for use in buildings.
cable designation: 02YSH (ST) CH 1x2x0,64/2,55-150 VI KF 25 FRNC FC.
electrical data:
attenuation factor per length.
at 9.6 kHz / maximum: 0.0025 dB/m.
at 38.4 kHz / maximum: 0.004 dB/m.
at 4 MHz / maximum: 0.022 dB/m.
at 16 MHz / maximum: 0.042 dB/m.
Impedance.
rated value: 150 Ω.
at 9.6 kHz: 270 Ω.
at 38.4 kHz: 185 Ω.
at 3 MHz … 20 MHz: 150 Ω.
relative symmetrical tolerance.
of the characteristic impedance at 9.6 kHz: 10 %.
of the characteristic impedance at 38.4 kHz: 10 %.
of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
loop resistance per length / maximum: 110 mΩ/m.
shield resistance per length / maximum: 9.5 Ω/km.
capacity per length / at 1 kHz: 28.5 pF/m.
operating voltage.
RMS value: 80 V.
mechanical data:
number of electrical cores: 2.

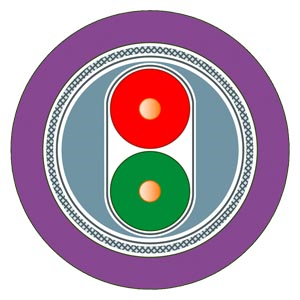

design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
type of electrical connection / FastConnect: Yes.
outer diameter.
of inner conductor: 0.65 mm.
of the wire insulation: 2.55 mm.
of the inner sheath of the cable: 5.4 mm.
of cable sheath: 8 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
material.
of the wire insulation: polyethylene (PE).
of the inner sheath of the cable: FRNC.
of cable sheath: FRNC.
Colour.
of the insulation of data wires: red/green.
of cable sheath: Violet.
bending radius.
with single bend / minimum permissible: 60 mm.
with multiple bends / minimum permissible: 80 mm.
tensile load / maximum: 100 N.
weight per length: 72 kg/km.
ambient conditions:
ambient temperature.
during operation: -25 ... +80 °C.
during storage: -25 ... +80 °C.
during transport: -25 ... +80 °C.
during installation: -25 ... +80 °C.
note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472 .
fire behaviour: flame resistant according to IEC 60332-3-24 (Category C), IEC 60332-3-22 (Category A), EN 50267-2-1/2, IEC 61034.
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: oil-resistant according to IEC 60811-401.
to grease: Conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature.
halogen-free: Yes; halogen-free according to EN 60754-1-2.
silicon-free: Yes.
low-emission according to IEC 61034-2 Yes
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(UL)us, CM / CL3 / Sun Res.
UL/ETL style / 600 V Rating: Yes.
certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
Marine classification association.
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code.
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
