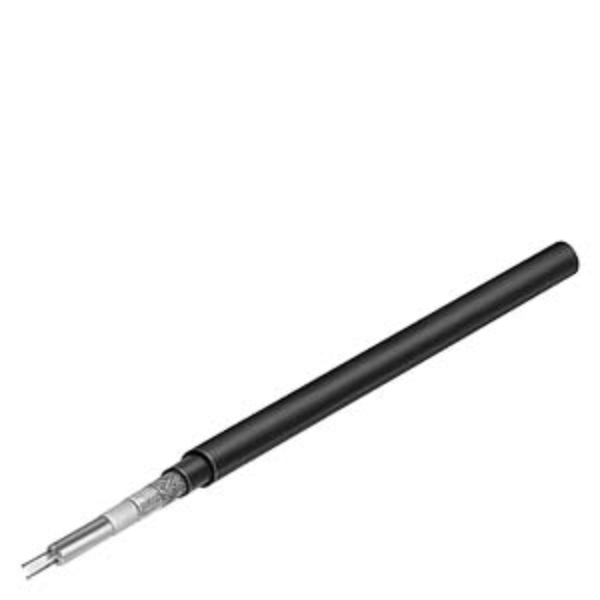

PROFIBUS marine cable SIENOPYR, copper cable for use on ships, sold by the meter
SKU: 6XV1830-0MH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type is SIENOPYR FR ship cable.
Bus cable (2-core), sold by the meter and unassembled.
PROFIBUS marine cable SIENOPYR, copper cable for laying on ships and OFFSHORE units, sold by the metre. Delivery unit max. 1000 m/min. 20 m.
Suitability for use: Cable for fixed installation on ships and offshore facilities in all enclosed spaces and on open decks. This cable cannot be used for permanent installation in water.
Cable designation M-02Y (ST) CH X 1 x 2 x 0,35 100 V.
Wire length sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.003 dB/m.
At 38.4 kHz / maximum: 0.005 dB/m.
At 4 MHz / maximum: 0.022 dB/m.
At 16 MHz / maximum: 0.045 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 250 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 110 mΩ/m.
Insulation resistance coefficient: 16000 GΩ·m.
Operating voltage:
RMS value: 100 V.
Mechanical data:
Number of electrical cores: 2.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the inner sheath of the cable: 8 mm.
Of cable sheath: 9.8 mm.
Of cable sheath / note: Outer diameter > 8 mm: Bus connectors can only be connected after removing the outer cover.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.5 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: Halogen-free polymer (HM4).
Of cable sheath: Halogen-free, cross-linked polymer.
Colour:
Of the insulation of data wires: red/green.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 98 mm.
With multiple bends / minimum permissible: 196 mm.
Tensile load / maximum: 100 N.
Weight per length: 110 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -35 ... +80 °C.
During storage: -35 ... +80 °C.
During transport: -35 ... +80 °C.
During installation: -15 ... +80 °C.
Note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Ambient condition / for operation: At ambient temperatures below -15 °C, the cable must not be subjected to any movements other than the normal vibration levels encountered on board ship.
Fire behaviour: flame resistant according to IEC 60332-3-24, IEC 607542, IEC 61031, DIN VDE 0472 Part 805 Prüfart B.
Chemical resistance:
To mineral oil: resistant to diesel fuel according to DIN VDE 51601, ASTM oil No. 2 according to DIN 53521, oil, NATOCode 0178, BWTL 91500031/2 according to VG 95214 part 4, hydraulic fluid, NATOCode H515, BWTL 91500020 according to VG 95214 Part 4, cold cleaning solvent, BW-TL 68500017 according to VG 95214 part 4, deionized water according to VG 95214 Part 4, deionized water with 3.5% NaCl.
To grease: resistant.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
