PROFIBUS Torsion Cable for use in highly flexible applications. (Torsion)
SKU: 6XV1830-0PH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS Torsion Cable.
Product Description: Highly flexible bus cable (2-core) supplied by the meter, unassembled.
PROFIBUS Torsion Cable, for use in very flexible applications (torsion).
Delivery unit: maximum 1000 m.
Minimum order quantity: 20 m.
Sold by the meter.
Suitability for use: For use in moving machine components.
Cable designation: 02Y (ST) C 11Y 1x2x0,8/2,56-150 LI FR VI.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.0025 dB/m.
At 38.4 kHz / maximum: 0.003 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 98 mΩ/km.
Shield resistance per length / maximum: 14 Ω/km.
Insulation resistance coefficient: 16000 GΩ·m.
Capacity per length / at 1 kHz: 29 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.

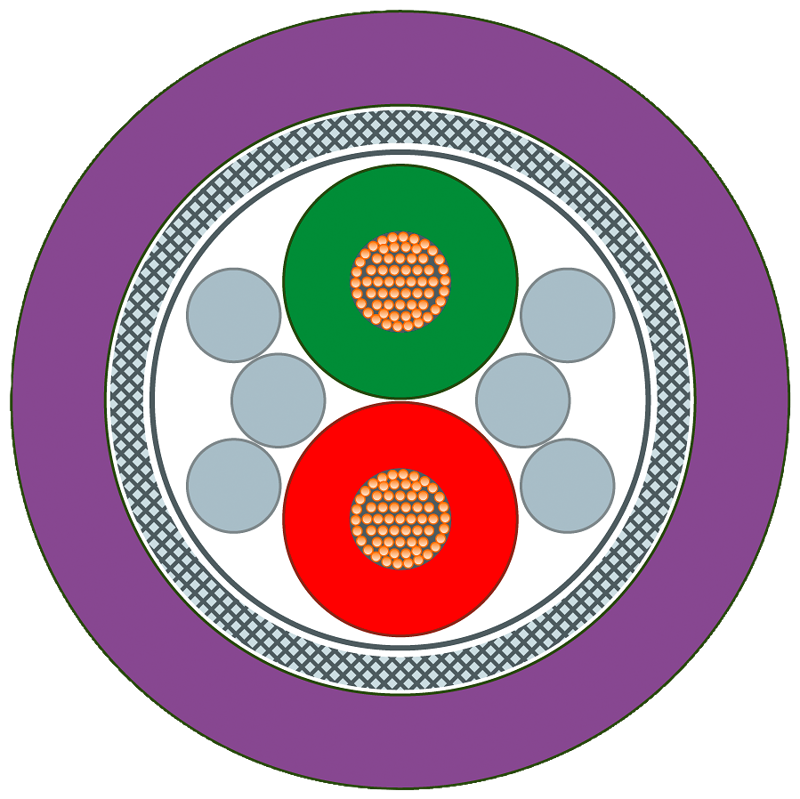

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
