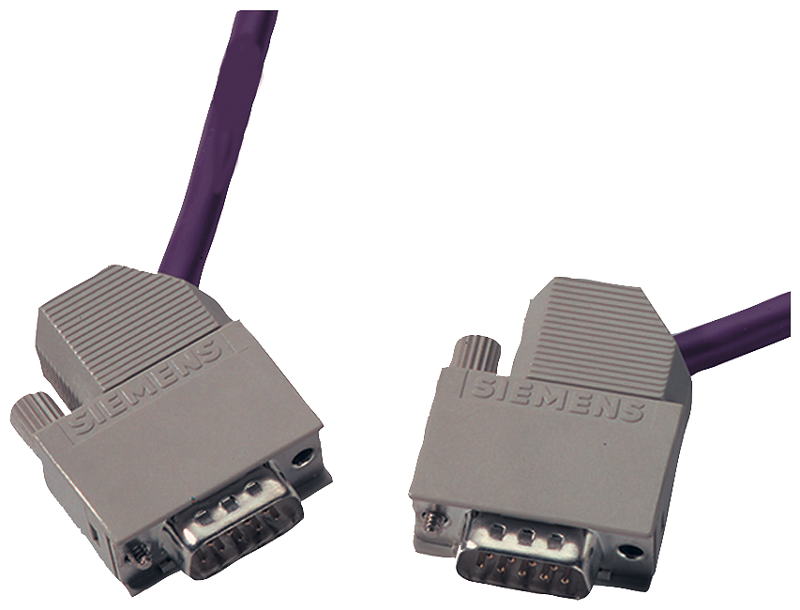

Plug-in cable 830-1T for PROFIBUS, connection Terminal devices pre-assembled
SKU: 6XV1830-1CH30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Cable 830-1T.
Product description. Plug-in cable in the desired length, preassembled with two 9-pole D-sub connectors.
Plug-in cable 830-1T for PROFIBUS for connecting terminal devices to OLM and OBT. Already pre-assembled with 2 D-sub connections, 9-pole cable terminated at both ends, 3 m.
Suitability for use: For connecting PROFIBUS stations to OLM or OBT.
Cable designation: L-02YSCY 1x2x0,22 VZN VI.
Wire length: 3 m.
Electrical data:
Number of electrical connections: 2.
Insulation resistance coefficient: 1 GΩ·m.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.
Design of the shield: Braided shield made of tin-plated copper wires.
Outer diameter:
Of inner conductor: 0.61 mm.
Of the wire insulation: 1.8 mm.
Of cable sheath: 5.7 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of cable sheath: Violet.
Bending radius:
With multiple bends / minimum permissible: 86 mm.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Fire behaviour: flame resistant according to IEC 60332-1.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
