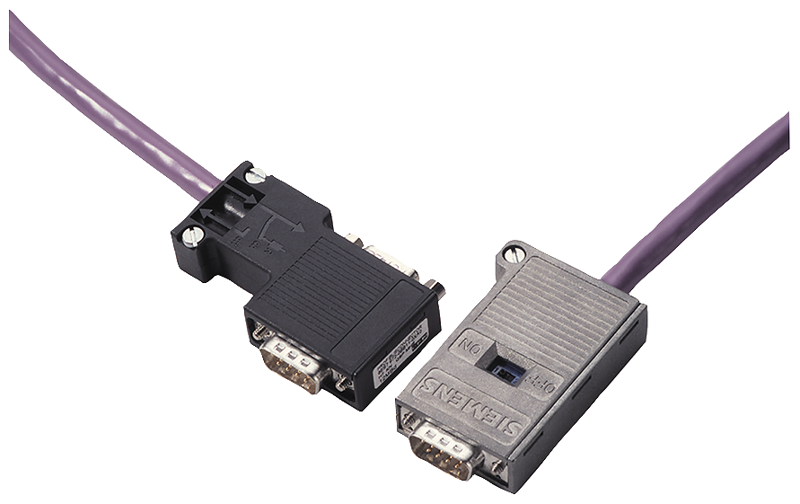

830-2 connecting cable for PROFIBUS, 2x sub-D plugs 9-pin, 3 m
SKU: 6XV1830-2AH30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS Cable 830-2.
Product description: Plug-in cable made of PROFIBUS standard cable, preassembled with two 9-pole connectors.
Plug-in cable 830-2 for PROFIBUS is a pre-assembled cable with two 9-pole D-sub connectors and connectable terminating resistors, measuring 3m.
Suitability for use: Cable for connecting PROFIBUS stations (e.g. HMI) to automation devices.
Cable designation: 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR.
Wire length: 3 m.
Electrical data:
Number of electrical connections: 2.
Attenuation factor per length:
At 9.6 kHz / maximum: 0.0025 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.022 dB/m.
At 16 MHz / maximum: 0.042 dB/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Outer diameter:
Of inner conductor: 0.65 mm.
Of the wire insulation: 2.55 mm.
Of cable sheath: 5.4 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of cable sheath: red/green.
Bending radius:
With single bend / minimum permissible: 37.5 mm.
With multiple bends / minimum permissible: 75 mm.
Weight per length: 80 kg/km.
Ambient conditions:
Ambient temperature:
note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4).
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP20.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(UL)us, CMG / CL3 / Sun Res.
UL/ETL style / 600 V Rating: Yes.
Certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
