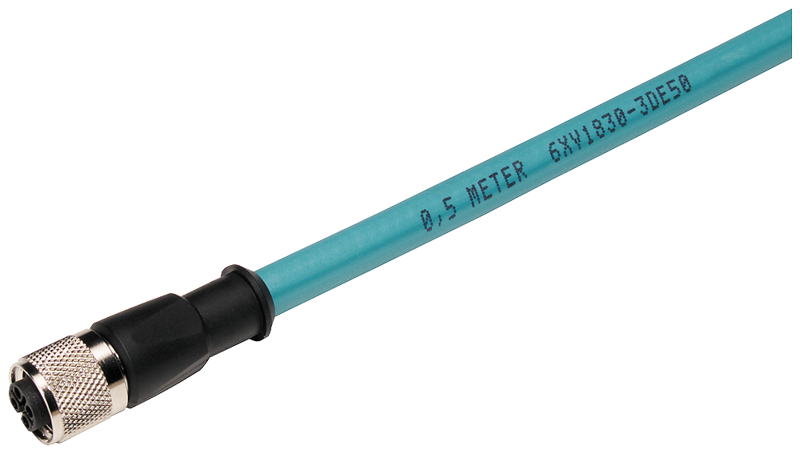

PROFIBUS M12 plug-in cable, (ET 200) pre-assembled PB FC trail
SKU: 6XV1830-3DE30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation is PROFIBUS M12-Cable.
Product description: Flexible plug-in cable (2-core), desired length, preassembled with two 5-pole M12 male/female connectors (B-coded).
PROFIBUS M12 connector cable (ET 200) PB FC Trailing Cable, pre-assembled, 5-pole, B-coded, 0.3-meter length, with two M12 connections.
Suitability for use: Cable for connecting PROFIBUS stations (e.g. SIMATIC ET 200) to IP 65 degree of protection.
Cable designation: 02YY (ST) C11Y 1x2x0,65/2,56-150 LI KF 40 FR petrol.
Wire length: 0.3 m
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.003 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 133 mΩ/km.
Shield resistance per length / maximum: 14 Ω/km.
Capacity per length / at 1 kHz: 28 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Type of electrical connection / FastConnect: Yes.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the wire insulation: 2.56 mm.
Of the inner sheath of the cable: 5.4 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PUR (TPE-U).
Colour:
Of the insulation of data wires: red / green.
Of cable sheath: Petrol.
Bending radius:
With single bend / minimum permissible: 40 mm.
With multiple bends / minimum permissible: 120 mm.
number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 120 mm (15x D) and an acceleration of 4 m/s².
Tensile load / maximum: 100 N.
Weight per length: 77 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
During installation: -40 ... +60 °C.
Note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Ambient condition / for operation: Limited segment length (see manual for PROFIBUS networks).
Fire behaviour: flame-retardant according to IEC 60332-1-2.
Chemical resistance:
To mineral oil: Oil resistant according to IEC 60811-2-1 (7x24h/90°C).
To grease: Resistance.
To water conditional resistance
Radiological resistance / to UV radiation: Resistant.
Protection class IP: IP65, IP67.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; CMX.
UL/ETL style / 600 V Rating: No.
Certificate of suitability: UL2238 E300110.
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
