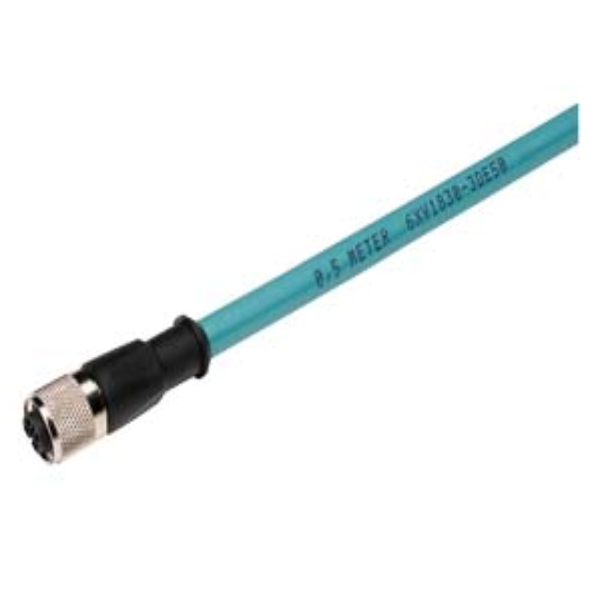

PROFIBUS M12 plug-in cable, (ET 200) pre-assembled PB FC trail. Cable+2 M12, 15m
SKU: 6XV1830-3DN15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (2-core).
Preassembled with two 5-pole M12 male/female connectors (B-coded).
PROFIBUS M12 plug-in cable (ET 200).
Suitable for connecting PROFIBUS stations (e.g. SIMATIC ET 200) to IP 65 degree of protection.
Wire length: 15 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of electrical connections: 2 connections.
Maximum loop resistance per length: 133 mΩ/m.
Maximum shield resistance per length: 14 Ω/km.
Capacity per length / at 1 kHz: 28 pF/m.
Operating voltage, RMS value: 80 V.
Number of electrical cores: 2 cores.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Outer diameter:
Inner conductor: 0.67 mm.
The wire insulation: 2.56 mm.
Inner sheath of the cable: 5.4 mm.
Cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
Material:
The wire insulation: polyethylene (PE).
The inner sheath of the cable: PVC.
Cable sheath: PUR (TPE-U).
Colour:
The insulation of data wires: red/green.
Cable sheath: petrol.
Bending radius:
With single bend / minimum permissible: 40 mm.
With continuous bending: 120 mm.
Maximum tensile load: 100 N.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
During installation: -40 ... +60 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (7x24h/90°C).
To grease: resistant.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65, IP67.
