PROFIBUS FESTOON Cable GP for festoon suspension, 2-core shielded
SKU: 6XV1830-3GH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS Festoon Cable GP.
Product Description: Flexible bus cable (2-core) supplied by the meter, unassembled.
PROFIBUS FESTOON Cable GP is a 2-core shielded cable with a maximum acceleration of 4 m/QS and a minimum of 5 million bending cycles.
It is sold by the meter.
Delivery unit: maximum 1000 m, minimum order quantity: 20 m.
Suitability for use: Specially for festoon attachment.
Cable designation: 02YS (ST) CY 1 x 2 x 0,65/2,56 LI petrol FR.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.003 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 133 mΩ/km.
Shield resistance per length / maximum: 19 Ω/km.
Insulation resistance coefficient: 16000 GΩ·m.
Capacity per length / at 1 kHz: 28 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.

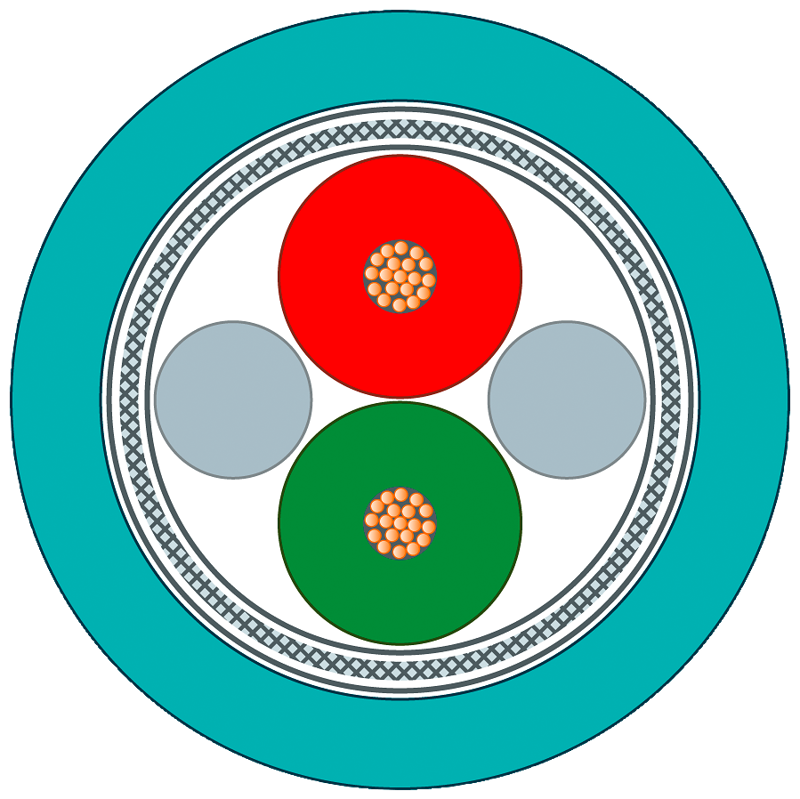

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the wire insulation: 2.56 mm.
Of the inner sheath of the cable: 5.8 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: red / green.
Of cable sheath: Petrol.
Bending radius:
With single bend / minimum permissible: 30 mm.
With multiple bends / minimum permissible: 70 mm.
Tensile load / maximum: 80 N.
Weight per length: 64 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame resistant according to IEC 60332-3-24 (Category C).
Class of burning behaviour / according to EN 13501-6: Eca.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; CMG / PLCT / Sun Res / Oil Res.
UL/ETL style / 600 V Rating: Yes.
Certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
