PROFIBUS FC process cable, haz. appl., blue jacket, 2-core shielded
SKU: 6XV1830-5EH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product description: 2-core bus cable, unassembled, sold by the meter.
PB FC Process Cable GP/ Ethernet-APL cable GP, bus cable for IEC 61158-2 (PB) and IEC TS 60079-47 (2-WISE) sheath colour blue for Ex applications 2-core shielded, supplied by the meter, delivery unit maximum 1000 m, minimum order quantity 20 m.
Suitability for use: in fieldbus systems according to IEC 61158-2 (e.g. PROFIBUS PA) and IEC TS 60079-47 (2-WISE) / for APL (cable type A), suitable for Ex applications.
Cable designation: 02YSY (ST) CY 1x2x1,0/2,55-100 BL OE FR.
Electrical data:
Attenuation factor per length:
At 38.4 kHz / maximum: 0.003 dB/m.
Return loss:
At 3 MHz: 19 dB.
Impedance:
Rated value: 100 Ω.
At 31.25 kHz: 100 Ω.
At 3 MHz … 20 MHz: 100 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 31.25 kHz: 20 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 15 %.
Loop resistance per length / maximum: 44 mΩ/m.
Shield resistance per length / maximum: 6.5 Ω/km.
Capacity per length / at 1 kHz: 92 pF/m.
Inductance per length: 0.65 µH/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.

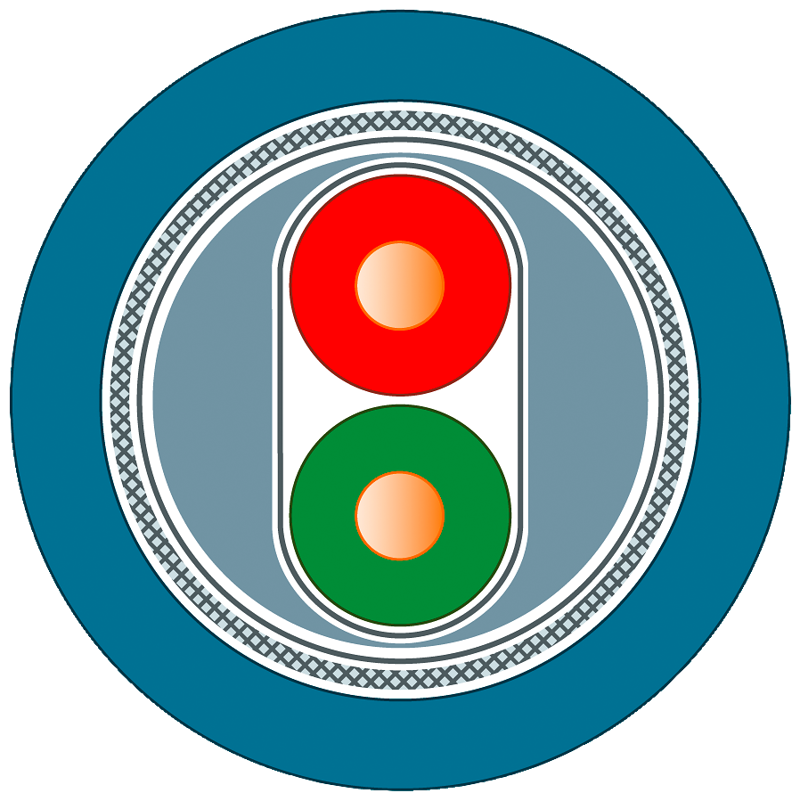

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided shield of tin-plated copper wires with shield wire.
