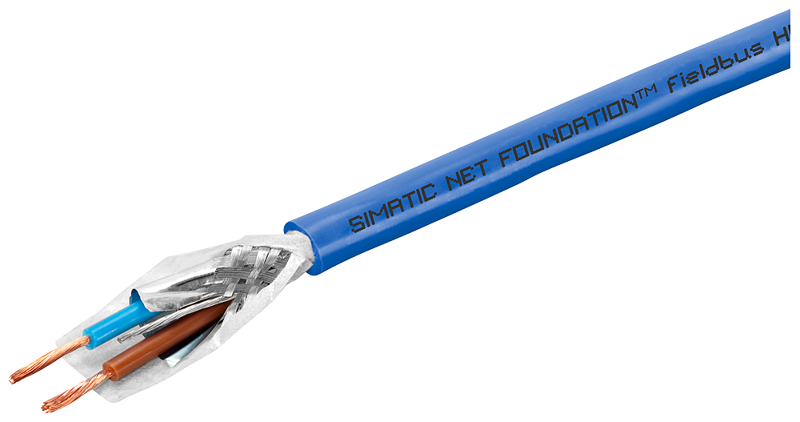

Foundation Fieldbus cable, haz. appl., blue jacket
SKU: 6XV1830-5GH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Foundation Fieldbus Cable.
Product Description: Bus cable (2-core), sold by the meter and unassembled.
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath colour blue for Ex applications; 2-core shielded; stranded drain wire; Sold by the meter, with a delivery unit limit of 1000 m and a minimum order quantity of 20 meters.
Suitability for use: For use in fieldbus systems according to IEC 61158-2 (e.g. Foundation Fieldbus), suitable for Ex applications.
Cable designation: 2X(ST)CY 1X2X1.1/2.85-100 LI BL FR OE.
Electrical data:
Attenuation factor per length:
At 38.4 kHz / maximum: 0.003 dB/m.
Impedance:
Rated value: 100 Ω.
At 31.25 kHz: 100 Ω.
At 38.4 kHz: 100 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 31.25 kHz: 20 %.
Of the characteristic impedance at 38.4 kHz: 20 %.
Loop resistance per length / maximum: 46 mΩ/m.
Shield resistance per length / maximum: 10 Ω/km.
Capacity per length / at 1 kHz: 65 pF/m.
Inductance per length: 0.75 µH/m.
Operating voltage:
RMS value: 300 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided shield of tin-plated copper wires with shield wire.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 1.17 mm.
Of the wire insulation: 2.85 mm.
Of the inner sheath of the cable: 6.4 mm.
Of cable sheath: 8.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: blue/brown.
Of cable sheath: blue.
Bending radius:
With single bend / minimum permissible: 34 mm.
With multiple bends / minimum permissible: 68 mm.
Tensile load / maximum: 100 N.
Weight per length: 98 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +105 °C.
During storage: -40 ... +105 °C.
During transport: -40 ... +105 °C.
During installation: -40 ... +105 °C.
Note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472.
Ambient condition / for operation: Transfer rate of cable: 31.25 Kbit/s.
Fire behaviour: flame resistant according to IEC 60332-1-2.
Class of burning behaviour / according to EN 13501-6: Eca.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: Conditional resistance.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(UL)us, CMG / PLTC / Sun Res.
UL/ETL style / 600 V Rating: No.
Certificate of suitability:
EAC approval: Yes.
RoHS conformity: Yes.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
