PB ECOFAST Hybrid Cable, 2xCu 0.64 mm, 4xCu 1.5 mm2, ECOFAST connector/socket
SKU: 6XV1830-7BH05
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS ECOFAST Hybrid Cable.
Product Description: ECOFAST Hybrid cable (data and energy wires), chosen length, with ECOFAST connection and socket.
PROFIBUS ECOFAST Hybrid Cable, 2xCu 0.64 mm, 4xCu 1.5 mm2, pre-assembled with ECOFAST plug and socket, trailable, 0.5 m long.
Suitability for use Hybrid cable for connection of ECOFAST stations.
Cable designation 02Y (ST)C 1 x 2 x 0.65/2.56 - 150 LI LIH-Z 11Y 4 x 1 x 1.5 VI FRNC.
Wire length 0.5 m
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.003 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 138 Ω/km.
Shield resistance per length / maximum: 15 Ω/km.
Insulation resistance coefficient: 20 GΩ·m.
Operating voltage / maximum: 80 V.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage / RMS value: 100 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 12 A.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:

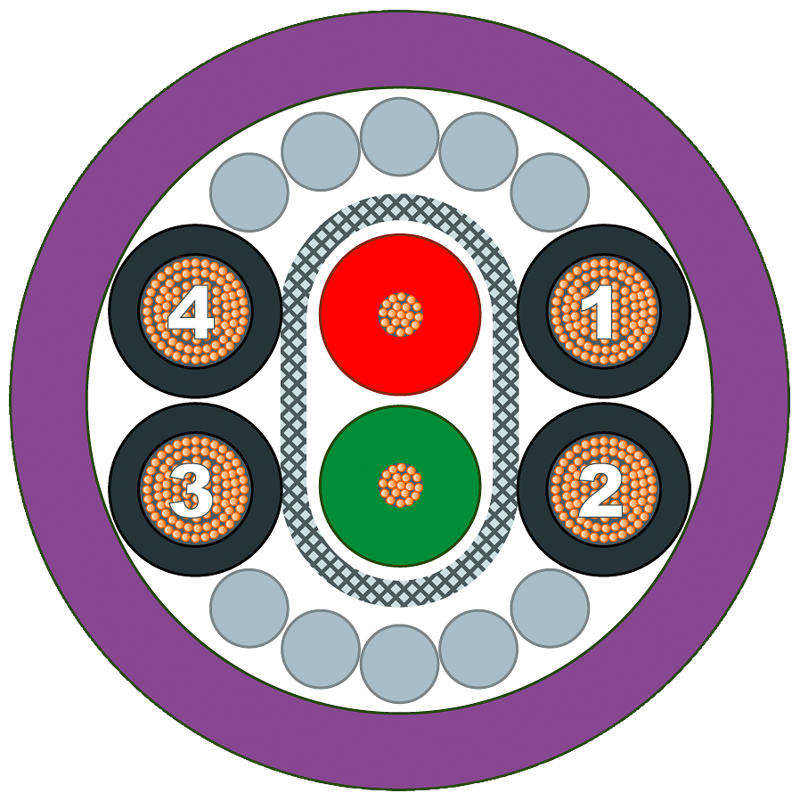

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Number of electrical cores: 6.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the wire insulation: 2.56 mm.
Of cable sheath: 11 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PUR.
Colour:
Of the insulation of data wires: red / green.
Of the power line insulation: Black.
Of cable sheath: Violet.
Bending radius:
With multiple bends / minimum permissible: 82.5 mm.
Number of bending cycles: 5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 82.5 mm (7.5x D) and an acceleration of 2.5 m/s².
Tensile load / maximum: 300 N.
Weight per length: 150 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
During installation: -40 ... +60 °C.
Note: Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame-retardant according to IEC 60332-1.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65.
Product features, product functions, product components / general:
Product feature:
Halogen-free: Yes.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: No.
UL/ETL style / 600 V Rating: No.
Certificate of suitability:
EAC approval: Yes.
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2:2019: WZA.
