PB ECOFAST Hybrid Cable, 2xCu 0.64 mm, 4xCu 1.5 mm2
SKU: 6XV1830-7BH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS ECOFAST Hybrid Cable.
Product description: ECOFAST hybrid cable (data and energy wires), desired length, completed with ECOFAST connector and socket.
PROFIBUS ECOFAST Hybrid Cable, 2xCu 0.64 mm, 4xCu 1.5 mm2, pre-assembled with ECOFAST plug and socket, trailable, length: 1.0 m.
Suitability for use: Hybrid cable for connection of ECOFAST stations.

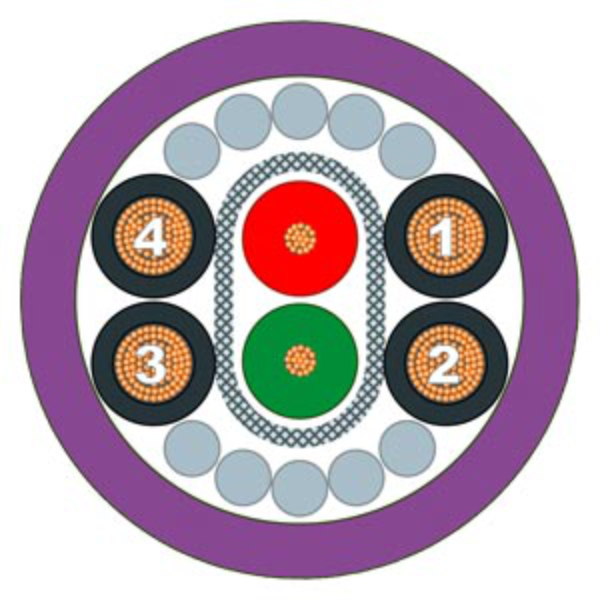

Cable designation: 02Y (ST)C 1 x 2 x 0.65/2.56 - 150 LI LIH-Z 11Y 4 x 1 x 1.5 VI FRNC.
Wire length: 1 m.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.003 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 138 Ω/km.
Shield resistance per length / maximum: 15 Ω/km.
Insulation resistance coefficient: 20 GΩ·m.
Operating voltage / maximum: 80 V.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage / RMS value: 100 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 12 A.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
During installation: -40 ... +60 °C.
Note: Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame-retardant according to IEC 60332-1.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65.
