PB ECOFAST Hybrid Cable, 2xCu 0.64 mm, 4xCu 1.5 mm2, ECOFAST connector/socket
SKU: 6XV1830-7BH50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ECOFAST Hybrid cable (data and energy wires).
Assembled with ECOFAST connector and socket.
Suitable for Hybrid cable for connection of ECOFAST stations.
Wire length: 5 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Maximum loop resistance per length: 138 Ω/km.
Maximum shield resistance per length: 15 Ω/km.
Insulation resistance coefficient: 20 GΩ·m.
Maximum operating voltage: 80 V.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage / RMS value: 100 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 12 A.

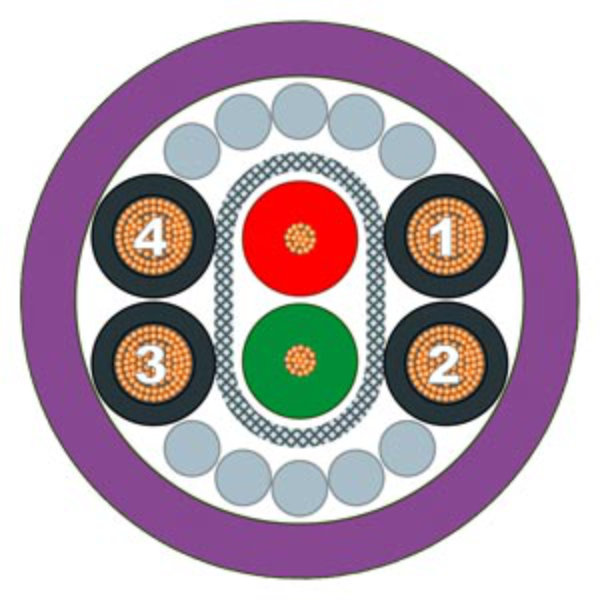

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Number of electrical cores: 6 cores.
Outer diameter:
Inner conductor: 0.67 mm.
The wire insulation: 2.56 mm.
Cable sheath: 11 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
The wire insulation: polyethylene (PE).
Cable sheath: PUR.
Colour:
The insulation of data wires: red / green.
The power line insulation: Black.
Cable sheath: Violet.
Bending radius with multiple bends / minimum permissible: 82.5 mm.
Maximum tensile load: 300 N.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +60 °C.
During transport: -40 ... +60 °C.
During installation: -40 ... +60 °C.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65.
