Energy Cable, 5-wire power cable, stranded wire 5x1.5 mm2
SKU: 6XV1830-8AH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Energy cable 5 x 1.5.
Power cable (5-core), unassembled and sold by the meter.

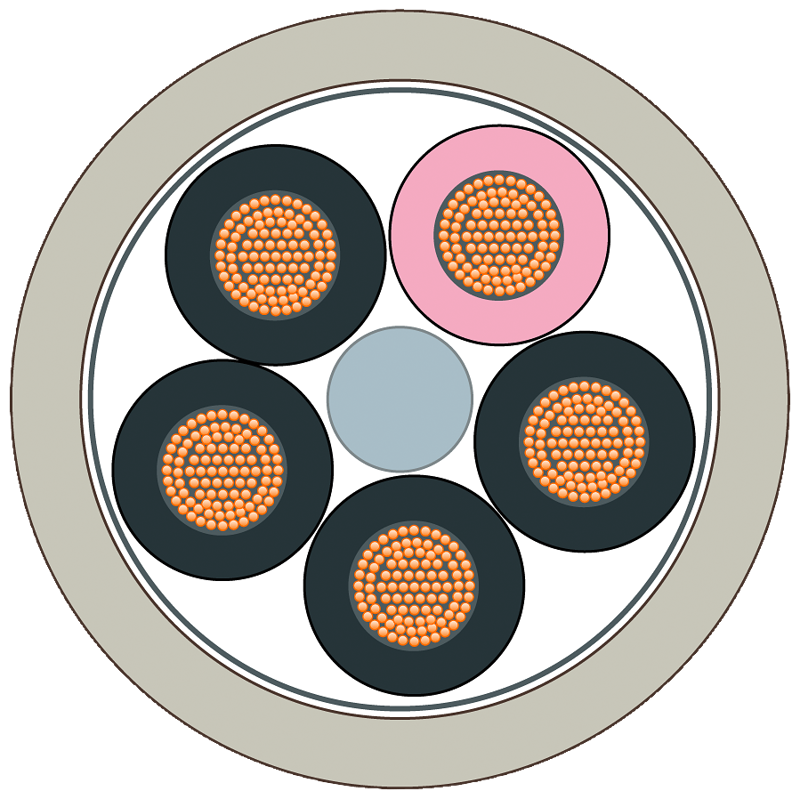

5-core power line, stranded wire, 5x1.5 mm2, trailable.
Maximum delivery unit is 1000 m, with a minimum order quantity of 20 m sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Power supply of ET 200 modules with 7/8" power port.
Electrical data:
Insulation resistance coefficient: 1 GΩ·m.
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 16 A.
Mechanical data:
Number of electrical cores: 5.
Outer diameter:
Of inner conductor: 1.55 mm.
Of the wire insulation: 2.73 mm.
Of cable sheath: 10.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Design of stranding element: Pairs.
Conductor class: 5.
Material:
Of the conductor: CU, blank.
Of the wire insulation: PVC.
Of cable sheath: PUR.
Marking / of cores: Colour, digits.
Colour:
Of the power line insulation: 4x black, 1x pink.
Of cable sheath: Grey.
Bending radius:
With single bend / minimum permissible: 27 mm.
With multiple bends / minimum permissible: 63 mm.
With continuous bending: 75 mm.
Number of bending cycles: 5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, an acceleration of 4 m/s² and a speed of 180 m/min.
Tensile load / maximum: 500 N.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Chemical resistance:
To mineral oil: DIN EN 60811-2-1.
To grease: resistant.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Silicon-free.
