PROFIBUS FC Standard Cable IS GP, 2-core, shielded, fast installation
SKU: 6XV1831-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS FC Standard Cable IS GP.
Product Description: Standard bus cable for quick installation, offered by the meter and unassembled.
PROFIBUS FC Standard Cable IS GP is a shielded, 2-wire bus cable with a specific configuration for rapid assembly.
Maximum delivery unit is 1000 meters, with a minimum order quantity of 20 meters, sold by the meter.
Suitability for use: Used for intrinsically safe distributed I/O systems for permanent installation.
Cable designation: 02YSY (ST) CY 1x2x0,64/2,55 BL KF40 FR.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.0025 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.022 dB/m.
At 16 MHz / maximum: 0.042 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 110 mΩ/km.
Shield resistance per length / maximum: 9.5 Ω/km.
Insulation resistance coefficient: 16000 GΩ·m.
Capacity per length / at 1 kHz: 28.5 pF/m.
Operating voltage:
RMS value: 80 V.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Number of electrical cores: 2.

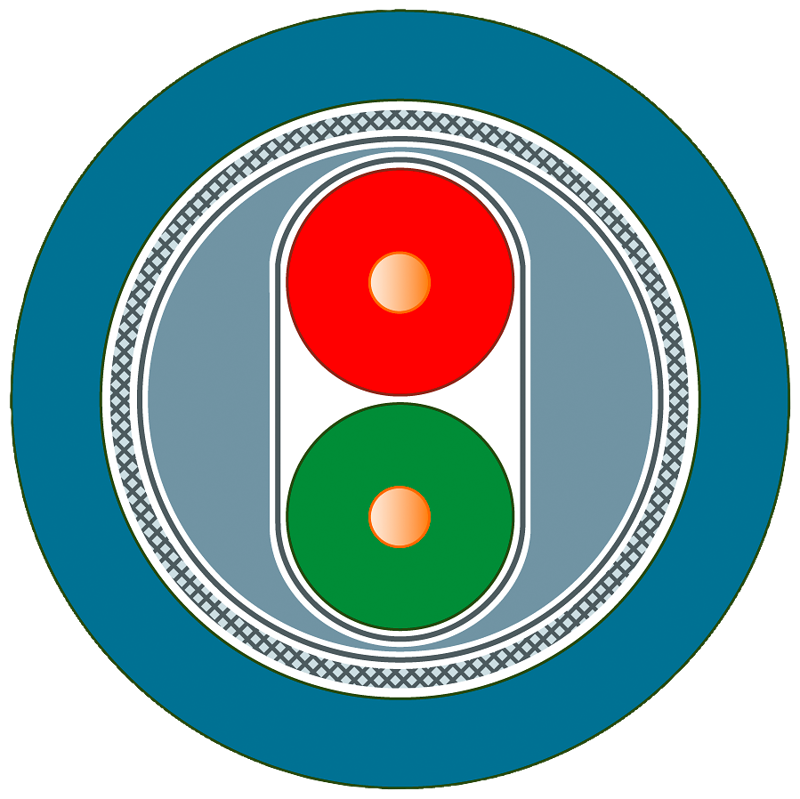

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
