Siemens S7-1500 PROFIBUS FC Trailling Cable, Sheath color: Violet
SKU: 6XV1831-2L
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The product type designation is PROFIBUS FC Trailing Cable.
Highly flexible bus cable (2-core), sold by the meter, unassembled.
PROFIBUS FC Trailing Cable has a maximum acceleration of 4 m/QS and a minimum of 3 million bending cycles. Bending radius is approximately 120 mm, 2-wire shielded, sold by the meter, delivery unit maximum of 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for: Continuous motion control in a cable carrier.
cable designation: 02YY (ST) C11Y 1x2x0,65/2,56-150 LI KF 40 FR VT FC.
electrical data:
attenuation factor per length.
at 9.6 kHz / maximum: 0.0003 dB/m.
at 38.4 kHz / maximum: 0.004 dB/m.
at 4 MHz / maximum: 0.025 dB/m.
at 16 MHz / maximum: 0.049 dB/m.
Impedance.
rated value: 150 Ω.
at 9.6 kHz: 270 Ω.
at 38.4 kHz: 185 Ω.
at 3 MHz … 20 MHz: 150 Ω.
relative symmetrical tolerance.
of the characteristic impedance at 9.6 kHz: 10 %.
of the characteristic impedance at 38.4 kHz: 10 %.
of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
loop resistance per length / maximum: 133 mΩ/m.
shield resistance per length / maximum: 14 Ω/km.
capacity per length / at 1 kHz: 28 pF/m.
operating voltage.
RMS value: 80 V.
mechanical data:
number of electrical cores: 2.

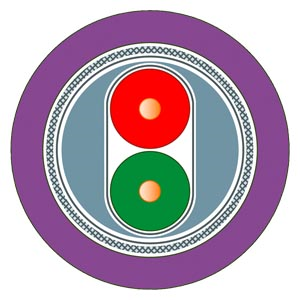

design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
type of electrical connection / FastConnect: Yes.
outer diameter.
of inner conductor: 0.67 mm.
of the wire insulation: 2.56 mm.
of the inner sheath of the cable: 5.4 mm.
of cable sheath: 8 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
material.
of the wire insulation: polyethylene (PE).
of the inner sheath of the cable: PVC.
of cable sheath: PUR (TPE-U).
Colour.
of the insulation of data wires: red/green.
of cable sheath: Violet.
bending radius.
with single bend / minimum permissible: 40 mm.
with multiple bends / minimum permissible: 120 mm.
number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 120 mm (15x D), a speed of 4 m/s and an acceleration of 4 m/s².
tensile load / maximum: 100 N.
weight per length: 77 kg/km.
ambient conditions:
ambient temperature.
during operation: -40 ... +60 °C.
during storage: -40 ... +60 °C.
during transport: -40 ... +60 °C.
during installation: -40 ... +60 °C.
note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472 .
ambient condition / for operation: Limited segment length (see manual for PROFIBUS networks).
fire behaviour: flame resistant according to IEC 60332-1-2.
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: oil resistant according to IEC 60811-2-1 (7x24h/90°C).
to grease: Resistant.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature.
halogen-free: No.
silicon-free: Yes.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes, CMX.
UL/ETL style / 600 V Rating: No.
certificate of suitability.
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
Marine classification association.
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code.
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
