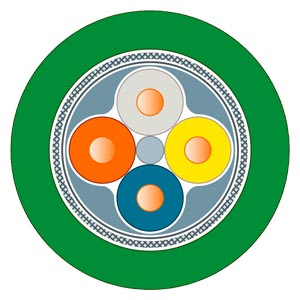

Industrial Ethernet FC TP Standard cable, GP 2x2
SKU: 6XV1840-2AH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Standard bus cable (4-core), sold by the meter and unassembled.
Industrial Ethernet FC TP Standard cable, GP 2x2 (PROFINET Type A), TP installation cable for connection to IE FC RJ45 2x2, for universal use, 4-core, shielded CAT 5E, offered by the meter, maximum delivery unit 4000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for use: Standard cable with rigid cores for fast installation.
cable designation: 2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP.
electrical data:
attenuation factor per length.
at 10 MHz / maximum: 0.052 dB/m.
at 100 MHz / maximum: 0.195 dB/m.
Impedance.
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance.
of the characteristic impedance at 1 MHz … 100 MHz: 15 %.
near-end crosstalk per length.
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 10 mΩ/m.
loop resistance per length / maximum: 115 mΩ/m.
operating voltage.
RMS value: 80 V.
NVP value in percent: 69 %.
mechanical data:
number of electrical cores: 4.
design of the shield: Overlapped aluminum-clad foil, sheathed in a braided screen of tin-platedcopper wires.
type of electrical connection / FastConnect: Yes.
core diameter.
of AWG22 insulated conductor: 0.64 mm.
outer diameter.
of inner conductor: 0.64 mm.
of the wire insulation: 1.5 mm.
of the inner sheath of the cable: 3.9 mm.
of cable sheath: 6.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material.
of the wire insulation: polyethylene (PE).
of the inner sheath of the cable: PVC.
of cable sheath: PVC.
Colour.
of the insulation of data wires: white/yellow/blue/orange.
of cable sheath: green.
bending radius.
with single bend / minimum permissible: 19.5 mm.
with multiple bends / minimum permissible: 49 mm.
tensile load / maximum: 150 N.
weight per length: 61 kg/km.
ambient conditions:
ambient temperature.
during operation: -40 ... +75 °C.
during storage: -40 ... +75 °C.
during transport: -40 ... +75 °C.
during installation: -40 ... +60 °C.
note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
fire behaviour: flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4).
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
to grease: Conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature.
halogen-free: No.
silicon-free: Yes.
wire length / for Industrial Ethernet.
with 100BaseTX: 100 m.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res.
UL/ETL style / 600 V Rating: Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2.
certificate of suitability.
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
standard for structured cabling: Cat5e.
Marine classification association.
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code.
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
