Siemens S7-1500 IE FC TP Trailling Cable 2x2 (Type C)
SKU: 6XV1840-3AH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Product Description: Unassembled, very flexible 4-core bus cable is sold by the meter.
Industrial Ethernet FC TP Trailing Cable, 2x2 (PROFINET type C), TP installation cable for connection to FC outlet RJ45, for cable carrier applications, 4-core, shielded, Cat5e, offered by the meter (4 million bending cycles), max delivery unit 2000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for use: Continuous motion control in a cable carrier.
cable designation: 2YH (ST) C11Y 2x2x0,75/1,5-100 LI GN VZN FRNC SF/UTP.
electrical data:
attenuation factor per length.
at 10 MHz / maximum: 0.06 dB/m.
at 100 MHz / maximum: 0.22 dB/m.
Impedance.
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance.
of the characteristic impedance at 1 MHz … 100 MHz: 5 %.
near-end crosstalk per length.
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 10 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage.
RMS value: 80 V.
NVP value in percent: 69 %.
mechanical data:
number of electrical cores: 4.

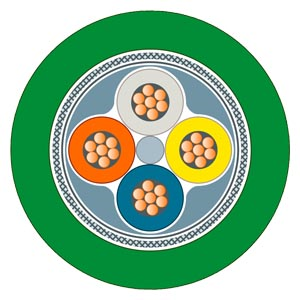

design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
type of electrical connection / FastConnect: Yes.
core diameter.
of AWG22 insulated conductor: 0.75 mm.
outer diameter.
of inner conductor: 0.75 mm.
of the wire insulation: 1.5 mm.
of the inner sheath of the cable: 3.9 mm.
of cable sheath: 6.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material.
of the wire insulation: polyethylene (PE).
of the inner sheath of the cable: FRNC.
of cable sheath: PUR (TPE-U).
Colour.
of the insulation of data wires: white/yellow/blue/orange.
of cable sheath: green.
bending radius.
with single bend / minimum permissible: 19.5 mm.
with multiple bends / minimum permissible: 49 mm.
with continuous bending: 100 mm.
number of bending cycles: 4000000; Drag chain suitable for 4 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
tensile load / maximum: 150 N.
weight per length: 63 kg/km.
ambient conditions:
ambient temperature.
during operation: -40 ... +75 °C.
during storage: -50 ... +75 °C.
during transport: -50 ... +75 °C.
during installation: -20 ... +60 °C.
note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
fire behaviour: flame resistant according to IEC 60332-1-2.
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: oil resistant according to IEC 60811-2-1 (7x24h/90°C).
to grease: Resistance.
to water: Resistance.
radiological resistance / to UV radiation: Resistant.
product features, product functions, product components / general:
product feature.
halogen-free: Yes.
silicon-free: Yes.
wire length / for Industrial Ethernet.
with 100BaseTX: 85 m.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; cULus / CMX.
UL/ETL style / 600 V Rating: Yes; cRU AWM I A/B 80°C 600V.
certificate of suitability.
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
standard for structured cabling: Cat5e.
Marine classification association.
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code.
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
