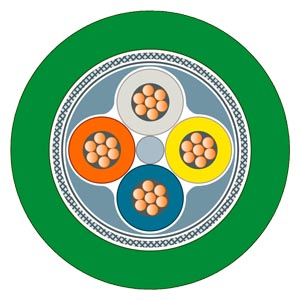

Siemens S7-1500 IE FC TP Marine Cable 2x2 (Type B)
SKU: 6XV1840-4AH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Halogen-free bus cable according to IEC 60754-1/2 (4-core), supplied by the meter, unassembled.
Industrial Ethernet FC TP Marine Cable, TP installation cable for connection to FC outlet RJ45, shipbuilding certified, 4-core, shielded, Cat5e, supplied by the meter, delivery unit limit 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for use: For marine and offshore use.
cable designation: L-9YH (ST) CH 2x2x0,34/1,5-100 GN VZN FRNC SF/UTP.
electrical data:
attenuation factor per length.
at 10 MHz / maximum: 0.06 dB/m.
at 100 MHz / maximum: 0.22 dB/m.
Impedance.
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance.
of the characteristic impedance at 1 MHz … 100 MHz: 5 %.
near-end crosstalk per length.
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 10 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage.
RMS value: 80 V.
NVP value in percent: 69 %.
mechanical data:
number of electrical cores: 4.
design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
type of electrical connection / FastConnect: Yes.
core diameter.
of AWG22 insulated conductor: 0.75 mm.
outer diameter.
of inner conductor: 0.75 mm.
of the wire insulation: 1.5 mm.
of the inner sheath of the cable: 3.9 mm.
of cable sheath: 6.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material.
of the wire insulation: PP.
of the inner sheath of the cable: FRNC.
of cable sheath: FRNC.
Colour.
of the insulation of data wires: white/yellow/blue/orange.
of cable sheath: green.
bending radius.
with single bend / minimum permissible: 39 mm.
with multiple bends / minimum permissible: 97.5 mm.
tensile load / maximum: 150 N.
weight per length: 68 kg/km.
ambient conditions:
ambient temperature.
during operation: -25 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
during installation: 0 ... +50 °C.
note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
ambient condition / for operation: Temperature range for permanent installation -40 °C to 85 °C.
fire behaviour: flame resistant according to IEC 60332-3-22 (Category A/F), smoke density according to IEC 61034-1/2.
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: conditional resistance, IEC 60811-2-1 (4 hours / 70 °C).
to grease: Conditional resistance.
to water: Conditional resistance.
radiological resistance / to UV radiation: Resistant.
product features, product functions, product components / general:
product feature.
halogen-free: Yes.
silicon-free: Yes.
wire length / for Industrial Ethernet.
with 100BaseTX: 85 m.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; cULus / CMG / PLTC / Sun Res.
UL/ETL style / 600 V Rating: No.
certificate of suitability.
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
standard for structured cabling: Cat5e.
Marine classification association.
American Bureau of Shipping Europe Ltd. (ABS): Yes.
French marine classification society (BV): Yes.
Det Norske Veritas (DNV): Yes.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): Yes.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): Yes.
Royal Institution of Naval Architects (RINA): Yes.
reference code.
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
