FO Robust Cable GP 4E9/125/900, segmentable, Singlem., rodent protection
SKU: 6XV1843-2R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Single-mode glass Fiber-optic cable offered by the meter, unassembled.
SM FO durable cable GP (4E9/125).
Outdoor cable with rodent protection, splitable, and without connector; offered by the meter; minimum order quantity 20 m; maximum length 2000 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 4.
Version of the FO conductor Fiber: Single mode Fiber 4E9/125/900, OS1 and OS2.
Design of the FOC core: Solid core, diameter 900 µm.

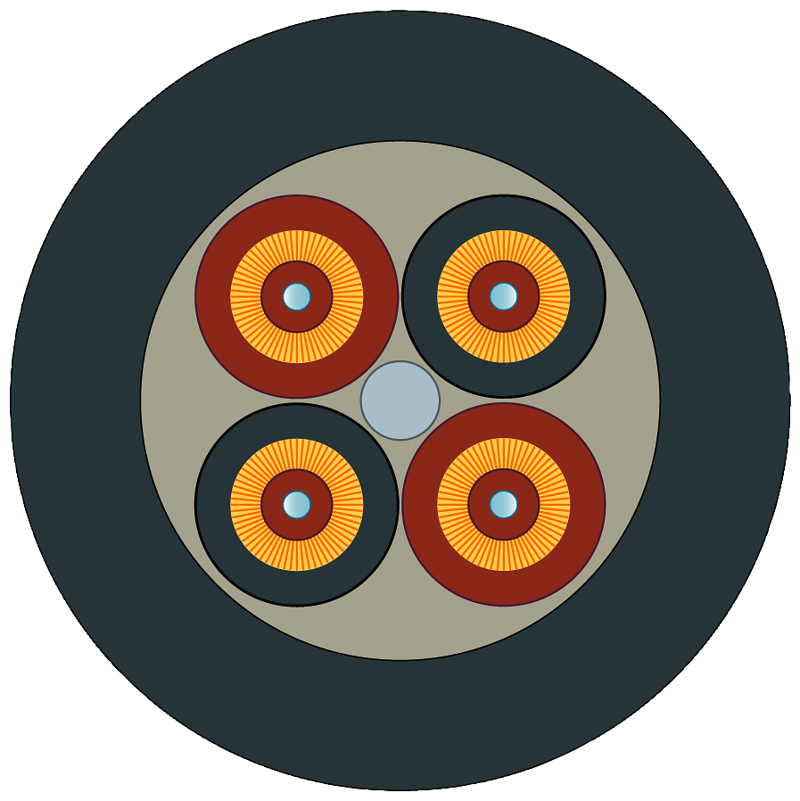

Design of the Fiber-optic cable: segmental.
Outer diameter:
Of the optical Fibers: 9 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 2.2 mm.
Outer diameter / of the cable: 9 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: PE flame retardant.
Of the Fiber-optic cable sheath: PE flame retardant.
Of the strain relief: Aramid Fibers, also central support element and glass roving.
Colour:
Of the FOC core sheath: orange/black, with direction arrow (core pairs numbered with 1 and 2).
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 90 mm.
With multiple bends / minimum permissible: 135 mm.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
During installation: -20 ... +60 °C.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
To water: resistant.
Radiological resistance / to UV radiation: resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 26000 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 5000 m.
For glass FOC / for 10GBaseLR / for Industrial Ethernet / maximum: 10000 m.
For glass FOC / with 10GBaseER / for Industrial Ethernet / maximum: 40000 m.
For glass FOC / with PROFIBUS / maximum: 15000 m.
