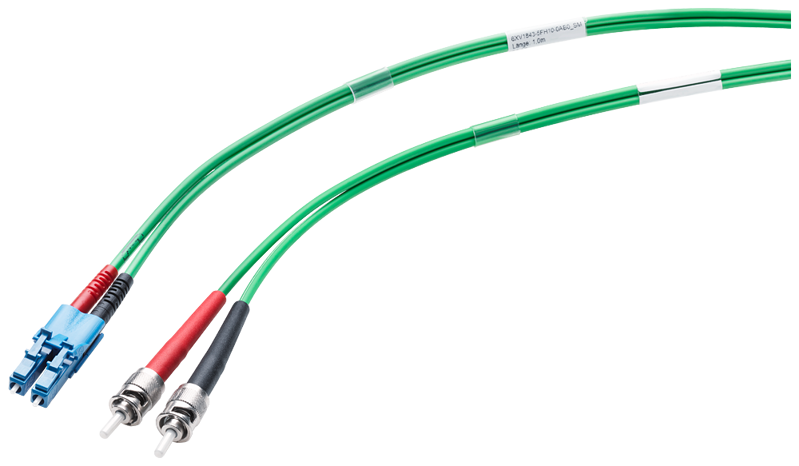

Fiber Optic Singlemode Cord ST/LC, 9/125, 1x LC duplex & 2x ST plug, 1 m
SKU: 6XV1843-5FH10-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Pre-assembled single mode glass Fiber optic cable.
SM FO Cord BFOC/LC, 9/125; pre-assembled with 1 LC duplex plug and 2 BFOC connectors; length 1.0 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for applications in the control cabinet.
Wire length: 1 m.
Mechanical data:
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Single mode glass Fiber 9/125 µm.
Design of the FOC core: Fixed core.
Outer diameter:
Of the optical Fibers: 9 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 2.8 mm.
Width / of cable sheath: 5.9 mm.
Thickness / of cable sheath: 2.8 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: FR-LSZH.
Of the Fiber-optic cable sheath: LSZH.
Of the strain relief: Aramid Fibers.
Colour of the FOC core sheath: green/green.
Bending radius with single bend / minimum permissible: 42 mm.
Tensile load:
During installation / short-term: 500 N.
During operation / maximum: 500 N.
Ambient temperature:
During operation: -30 ... +70 °C.
During storage: -30 ... +70 °C.
During transport: -30 ... +70 °C.
During installation: -5 ... +50 °C.
Protection class IP: IP20.
Product feature:
Halogen-free.
Silicon-free.
