FC FO Standard Cable GP 62.5/200/230 (OM 1), segmentable, MM, UL
SKU: 6XV1847-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Glass Fiber-optic cable for field assembly, sold unassembled by the meter.
FC FO Standard Cable (62.5/200/230), standard cable splitable, UL-approved, maximum length 1000 m, minimum order quantity 20 m, sold by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for permanent installation in cable channels and pipes, UL approval.
Attenuation factor per length:
At 850 nm / maximum: 3.2 dB/km.
At 1300 nm / maximum: 0.9 dB/km.
Bandwidth length product:
At 850 nm: 200 GHz·m.
At 1300 nm: 500 GHz·m.

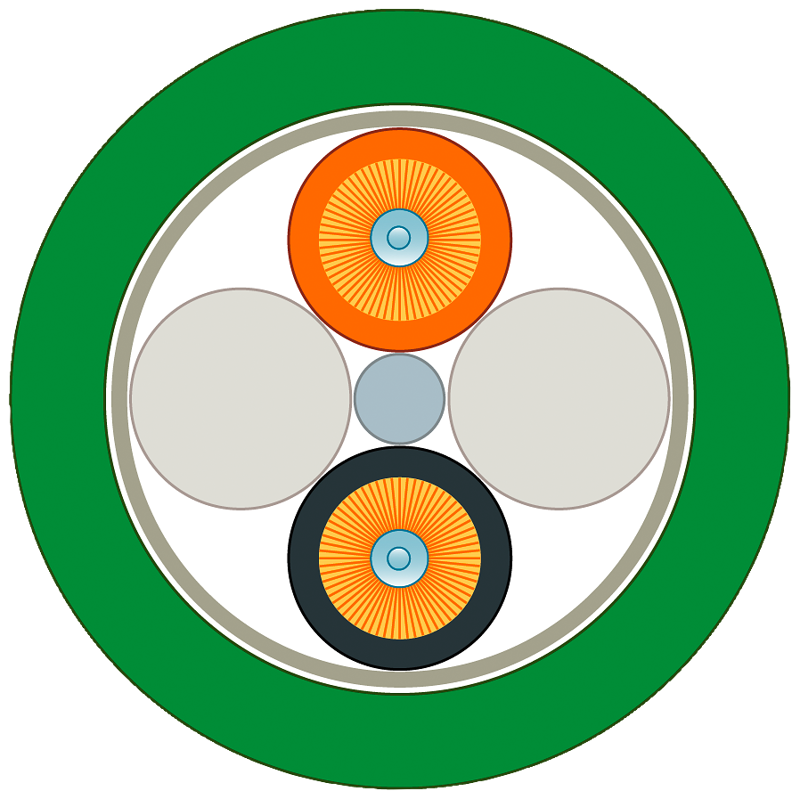

Mechanical data:
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Multi-mode gradient Fiber 62.5/200/230 µm.
Design of the FOC core: Fixed core.
Design of the Fiber-optic cable: Segmental cable.
Outer diameter:
Of the optical Fibers: 62.5 µm.
Of the optical Fiber sheath: 230 µm.
Of the FOC core sheath: 2.2 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 7.2 mm.
Symmetrical deviation / of the outer diameter of the line: 0.5 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: ETFE.
Of the FOC core sheath: PVC.
Of the Fiber-optic cable sheath: PVC.
Of the strain relief: Aramid Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 70 mm.
With multiple bends / minimum permissible: 105 mm.
Tensile load:
During installation / short-term: 800 N.
During operation / maximum: 100 N.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h.
To grease: conditional resistance.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 3000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 350 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 550 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
