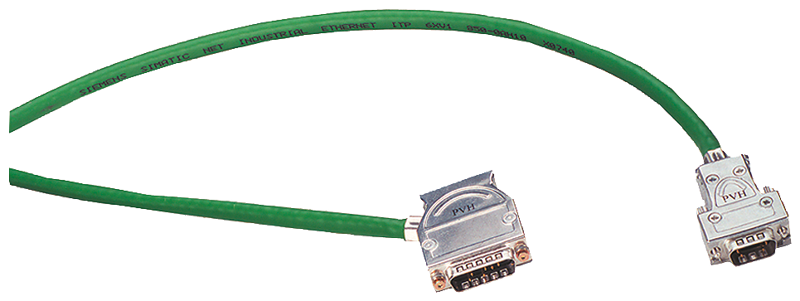

ITP Standard Cable for IE, 2x2-core for plug on-site assembly, sold by the meter
SKU: 6XV1850-0AH10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Industrial twisted pair cable (4-core) sold by the meter, unassembled.
ITP Standard Cable for Industrial Ethernet (J-02YSCY) 2x2X0.64/1.5 PIMF F, installation cable 2x2-core for on-site assembly of connector, unassembled, offered by the meter.
Order quantity minimum: 20 m; maximum delivery unit: 1000 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Impedance:
At 1 MHz ... 100 MHz: 100 Ω.
At 100 MHz … 300 MHz: 100 Ω.
Operating voltage:
RMS value: 165 V.
Maximum: 225 V.
Number of electrical cores: 2.
Design of the shield: Overlapped aluminium-clad foil (for each core), sheathed in an overall braided shield of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.64 mm.
Outer diameter:
Of inner conductor: 0.64 mm.
Of the wire insulation: 1.5 mm.
Width / of cable sheath: 9.2 mm.
Symmetrical tolerance of width / of cable sheath: 0.5 mm.
Thickness / of cable sheath: 6 mm.
Symmetrical tolerance of thickness / of cable sheath: 0.5 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/blue, white/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 30 mm.
With multiple bends / minimum permissible: 45 mm.
Tensile load / maximum: 80 N.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
During installation: -40 ... +70 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
Product feature: silicon-free.
