PB ECOFAST Hybrid Cable GP, 2xCu 0.64 mm, 4xCu 1.5 mm2, trailing
SKU: 6XV1860-2P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS ECOFAST Hybrid Cable GP.
Product Description: ECOFAST Hybrid cable (data and energy wires) is sold the meter and comes unassembled.
PROFIBUS ECOFAST Hybrid Cable GP, trailable cable with 4x Cu (1.5 mm2) and 2xCU (0.64 mm) shielding, sold by the meter, delivery unit maximum of 1000 m, minimum order quantity of 20 m.
Suitability for use: Hybrid cable for connection of ECOFAST stations, UL approval.
Cable designation: 02Y (ST)C 1x2x0.65/2.56 -150 LI LIY-Z Y 4x1x1.5 VI.
Wire length 0.5 m
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.004 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 138 Ω/km.
Shield resistance per length / maximum: 15 Ω/km.
Insulation resistance coefficient: 20 GΩ·m.
Operating voltage / maximum: 80 V.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage / RMS value: 600 V.
Conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 12 A.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:

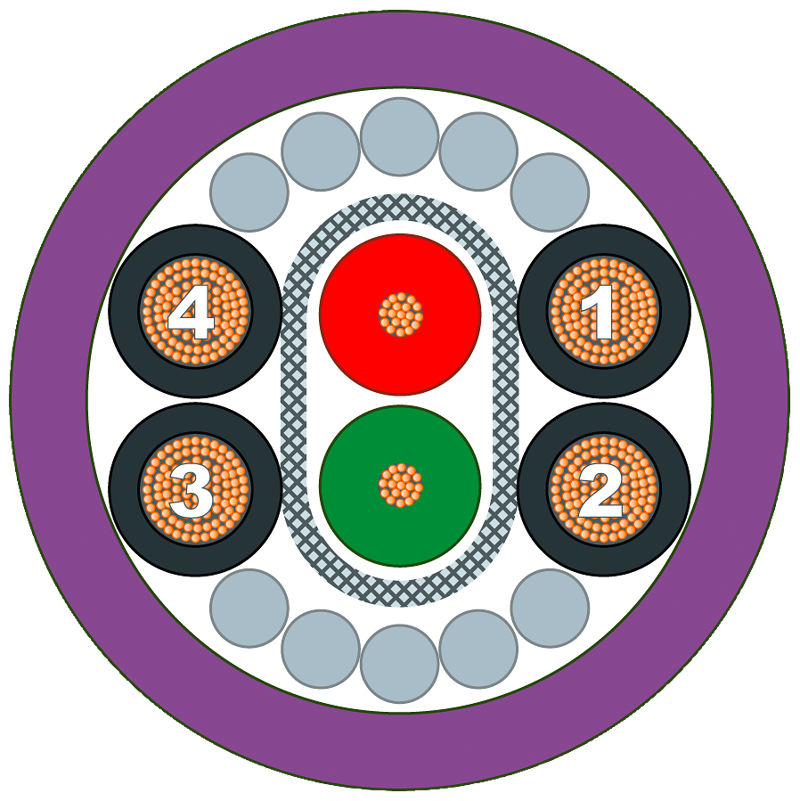

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Number of electrical cores: 6.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the wire insulation: 2.56 mm.
Of cable sheath: 11 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: red / green.
Of the power line insulation: Black.
Of cable sheath: Violet.
Bending radius:
With multiple bends / minimum permissible: 110 mm.
Number of bending cycles: 1000000; For use in cable carriers, for 1 million bending cycles with a bending radius of 166 mm (15x D) and an acceleration of 4.0 m/s².
Tensile load / maximum: 300 N.
Weight per length: 154 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -30 ... +80 °C.
During storage: -30 ... +80 °C.
During transport: -30 ... +80 °C.
During installation: -30 ... +80 °C.
Note: Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0472.
Fire behaviour: flame-retardant according to IEC 60332-3-24 (Category C).
Class of burning behaviour / according to EN 13501-6: Eca.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product features, product functions, product components / general:
Product feature:
Halogen-free: Yes.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: No.
UL/ETL style / 600 V Rating: Yes; CM / CL3 / SunRes / OilRes.
Certificate of suitability:
EAC approval: Yes.
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2:2019: WZA.
